35F0121-0SR-10

Overview

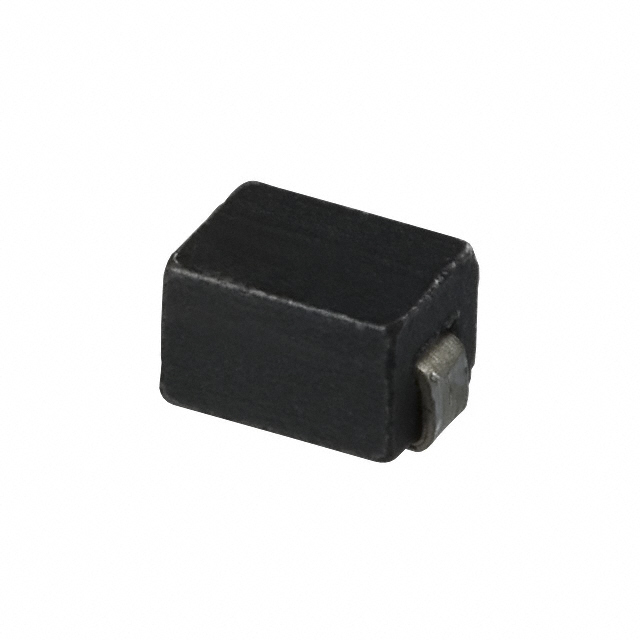

The 35F0121-0SR-10 is a single-line ferrite bead manufactured by Laird-Signal Integrity Products, designed for surface mount applications in the 1612 (4131 metric) package. It provides an impedance of 41 Ohms at 10 MHz and handles a maximum rated current of 10A. The component features a low DC resistance of 0.75 milliohms, ensuring minimal signal loss while effectively suppressing electromagnetic interference on power lines.

Feature Summary

• Provides effective high-frequency noise suppression for power line filtering applications
• Supports high current handling capabilities suitable for demanding power circuits
• Utilizes a compact surface mount footprint to optimize board space efficiency

Applications

• Power line filtering in electronic devices
• Electromagnetic interference suppression in circuit boards
• Signal integrity management in high-current applications

Procurement Notes

Verify the specific impedance frequency rating against design requirements, as datasheets may list values at different test frequencies such as 10 MHz or 100 MHz. Confirm that the 1612 package dimensions align with the target PCB layout. Ensure the selected variant meets all necessary environmental compliance standards for the intended deployment region.

Selection Notes

Select this component when a balance between high current capacity and moderate impedance is required for power rail filtering. The low DC resistance minimizes voltage drop across the component under load. Evaluate thermal performance constraints to ensure the device operates within safe limits during continuous high-current usage scenarios.

Part Context

This ferrite bead belongs to the 35F series from Laird-Signal Integrity Products, which focuses on robust EMI solutions for industrial and consumer electronics. The series offers various impedance profiles tailored for different frequency ranges, providing engineers with flexible options for noise control in complex multi-layer PCB designs.

Replacement Considerations

Direct substitutes include other 1612 package ferrite beads with similar 41 Ohm impedance and 10A current ratings. Verify pin compatibility and physical dimensions before swapping to ensure seamless integration without modifying the existing board layout.
