35T0301-00P

Overview

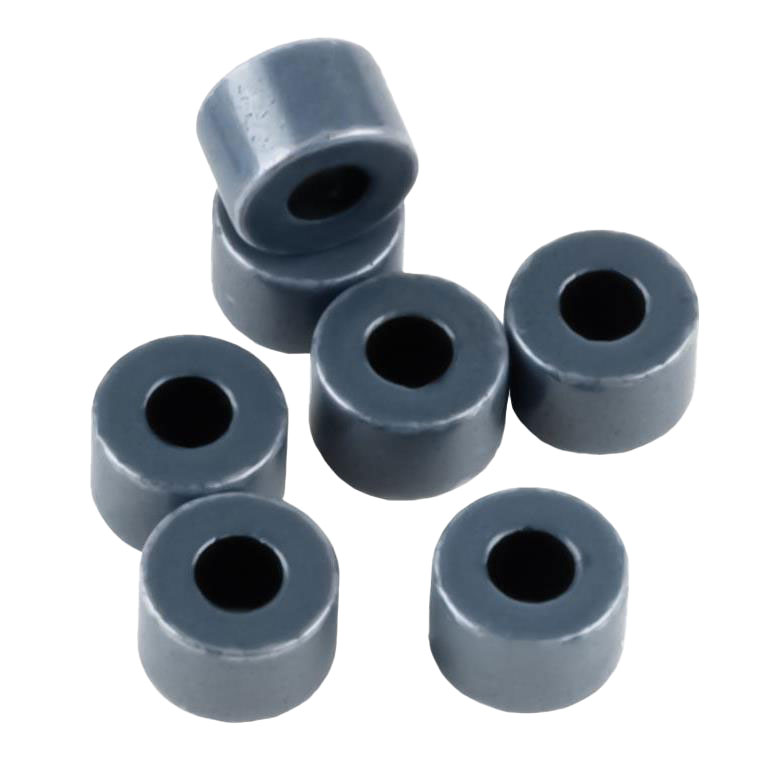

The 35T0301-00P is a ferrite toroid core manufactured by Laird-Signal Integrity Products. It features an outer diameter of 0.30 inches (7.62 mm). This component is designed for cable applications to suppress electromagnetic interference. The part is classified as a cable ferrite and is suitable for common mode filtering tasks.

Feature Summary

• Toroidal geometry for uniform magnetic flux distribution
• Designed for cable wrapping to suppress high-frequency noise
• Solid construction for mechanical stability

Applications

• Cable EMI suppression
• Common mode filtering
• Signal integrity enhancement on wires

Procurement Notes

Verify the specific impedance characteristics and material grade against the official datasheet for your frequency range. Confirm that the inner diameter accommodates the target cable bundle size. Ensure the supplier provides traceability documentation if required for your manufacturing process.

Selection Notes

Select this component based on the required inner diameter for the cable assembly. Evaluate the impedance profile at the target noise frequencies to ensure effective attenuation. Consider the physical constraints of the installation area when choosing between toroid and bead styles.

Part Context

This part belongs to the cable ferrite category from Laird-Signal Integrity Products. These components are used in various electronic systems to mitigate radiated emissions and improve immunity to external interference. They are commonly found in data, power, and signal cables.

Replacement Considerations

Check for identical outer diameter and inner diameter specifications. Verify that alternative materials offer comparable impedance curves at the operating frequency. Ensure the replacement part meets the same environmental and safety standards.
