Product Detailed Parameters

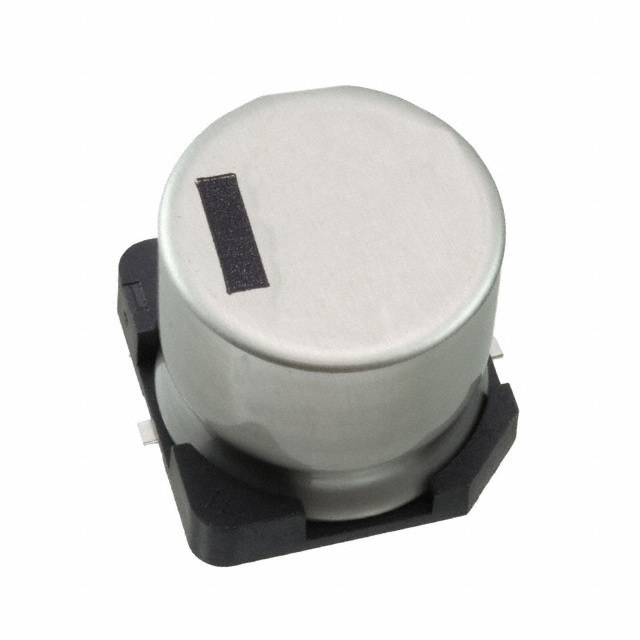

- Description：CAP ALUM 1000UF 20% 35V SMD
- Series：TGV
- Mfr：Rubycon
- Package：Tape & Reel (TR),Cut Tape (CT)
- Capacitance：1000 µF
- Tolerance：±20%
- Voltage - Rated：35 V
- ESR (Equivalent Series Resistance)：64mOhm @ 100kHz
- Lifetime @ Temp.：5000 Hrs @ 125°C
- Operating Temperature：-40°C ~ 125°C
- Polarization：Polar
- Ratings：AEC-Q200
- Applications：Automotive
- Ripple Current @ Low Frequency：780 mA @ 120 Hz
- Ripple Current @ High Frequency：1.3 A @ 100 kHz
- Lead Spacing：-
- Size / Dimension：0.709" Dia (18.00mm)
- Height - Seated (Max)：0.669" (17.00mm)
- Surface Mount Land Size：0.748" L x 0.748" W (19.00mm x 19.00mm)
- Mounting Type：Surface Mount
- Package / Case：Radial, Can - SMD
- Impedance：-
