36-00029-01

Overview

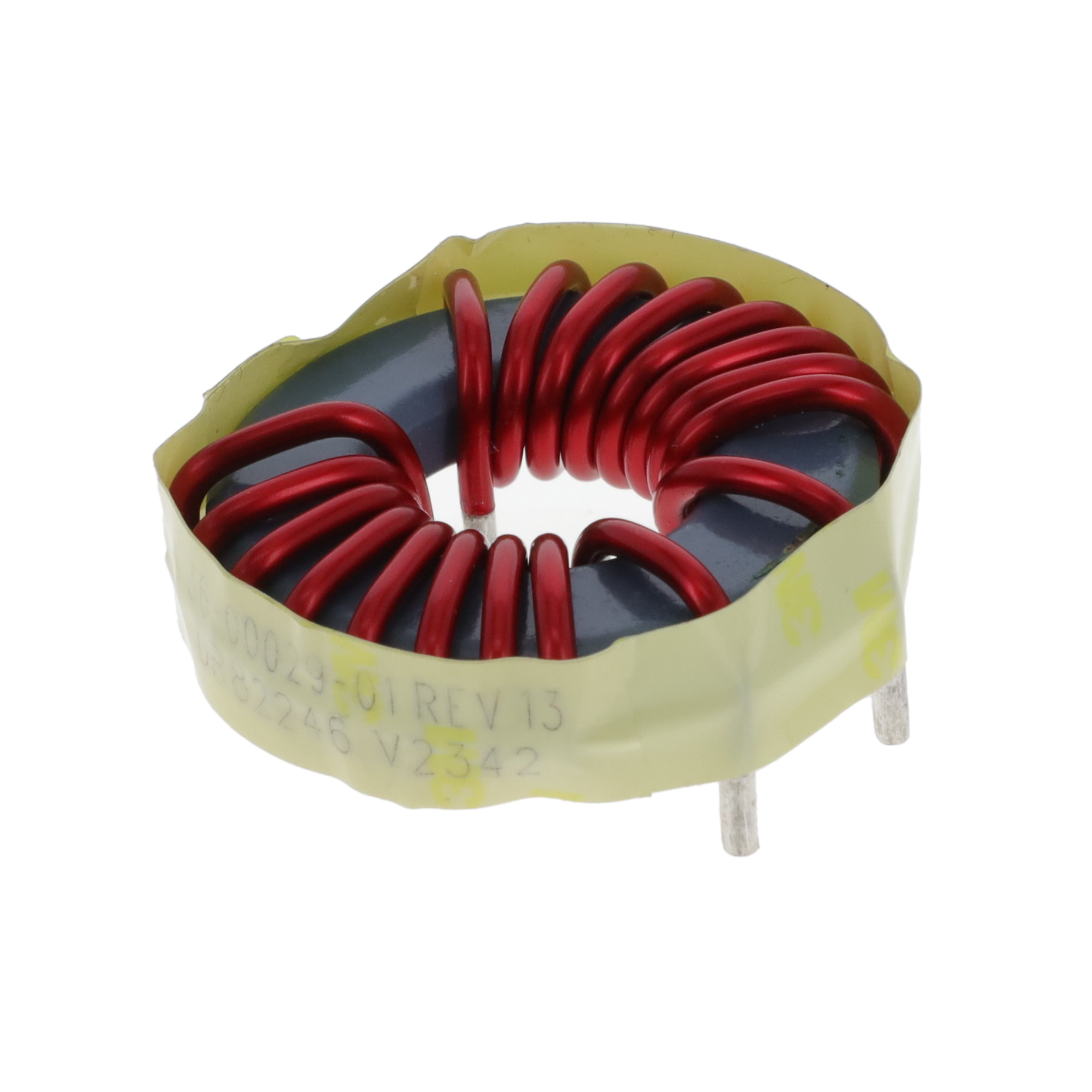

The Vicor Corporation model 36-00029-01 is a through-hole common mode choke designed for power line filtering applications. It features an inductance of 350 µH measured at 1 kHz and supports a current rating of 40 A. The component exhibits a direct current resistance (DCR) of 2.2 mΩ. This device is classified as a two-line filter intended for noise suppression in electrical circuits.

Feature Summary

• Provides common mode noise attenuation for dual-line configurations
• Engineered for high-current handling capabilities up to 40 amperes
• Constructed with low impedance characteristics to minimize signal loss

Applications

• Industrial power supply input filtering
• Data center equipment noise suppression
• High-power electronic system EMI mitigation

Procurement Notes

Verify the specific inductance tolerance and current derating curves against the official Vicor datasheet CST-0001 before integration. Confirm that the through-hole mounting style aligns with the target PCB layout requirements. Ensure the operating temperature range meets the environmental specifications of the final assembly to guarantee long-term reliability under load conditions.

Selection Notes

Select this component when designing systems requiring robust common mode rejection for high-current DC or AC lines. The 350 µH value offers significant impedance at switching frequencies, making it suitable for suppressing conducted emissions. Evaluate the physical footprint constraints, as through-hole implementations require specific board real estate compared to surface-mount alternatives.

Part Context

This component belongs to Vicor Corporation's passive components portfolio, specifically within their magnetic filter series. While Vicor is widely recognized for active DC-DC converters, this part serves as a complementary passive element for electromagnetic interference management in power distribution networks.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Designers should consult Vicor engineering support for equivalent specifications if sourcing issues arise.
