3600BP14M0600001T

Overview

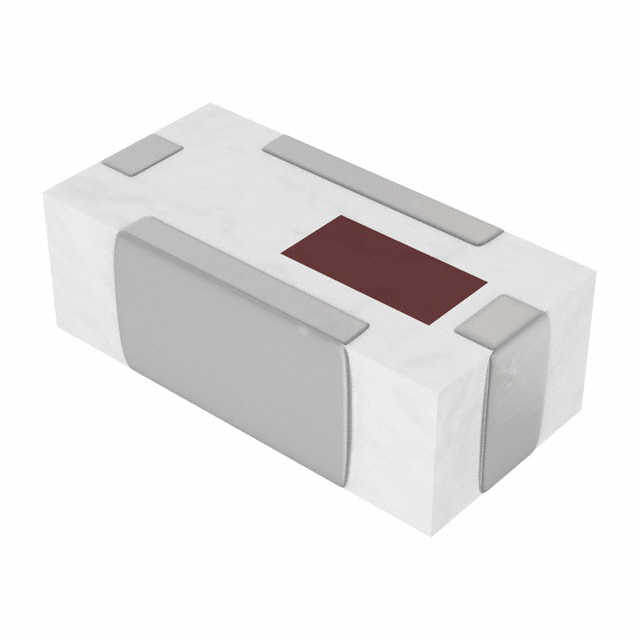

The Johanson Technology 3600BP14M0600001T is a surface-mount bandpass RF filter designed for signal conditioning applications. It operates with a center frequency of 3.5 GHz and provides a bandwidth of 400 MHz, covering the range from 3.3 GHz to 3.7 GHz. The component features a 50 Ohm impedance and exhibits an insertion loss of 2 dB. Packaged in a compact 0603 (1608 metric) footprint, it supports board mounting via SMD/SMT terminations. The device functions reliably within an operating temperature range of -40°C to +85°C.

Feature Summary

• Provides selective frequency filtering within the 3.3 GHz to 3.7 GHz bandpass range
• Utilizes a compact 0603 surface-mount package for space-constrained circuit designs
• Maintains 50 Ohm system impedance compatibility for standard RF interfaces

Applications

• WiMAX communication systems
• IoT modules requiring NB-IoT or LTE connectivity
• Cellular network infrastructure components

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current global part numbering guidelines before procurement. Confirm that the requested variant matches the exact electrical specifications required for the target application. Ensure compliance with RoHS3 standards and check for any regional distribution restrictions that may affect availability. Cross-reference distributor part numbers with the official Johanson Technology datasheet to prevent specification mismatches during sourcing.

Selection Notes

Select this component when a narrow 400 MHz bandwidth is required around the 3.5 GHz center frequency. The 0603 package size is suitable for high-density PCB layouts where minimal footprint is critical. Consider the 2 dB insertion loss characteristic when designing for power efficiency in the signal chain. Ensure the operating environment stays within the specified -40°C to +85°C thermal limits for reliable performance.

Part Context

This component belongs to the Johanson BP series of integrated passive devices. It is specifically engineered as a ceramic bandpass filter for radio frequency signal conditioning. The design integrates passive elements into a single monolithic structure, replacing discrete LC networks to improve reliability and reduce board space in modern wireless communication devices.

Replacement Considerations

The part number alias 3600BP14M0600T represents the same functional unit under an older naming convention. Verify mechanical dimensions and terminal configurations when substituting with other 0603 bandpass filters to ensure direct pin-to-pin compatibility without redesigning the PCB footprint.
