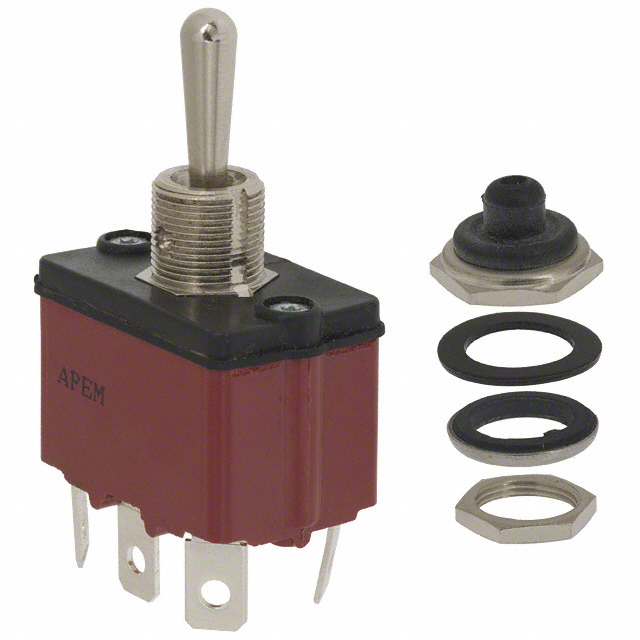

3645NF/2

3645NF/2 is listed in the Toggle Switches range at ChipApex. The manufacturer field lists APEM Inc.. Its product description is SWITCH TOGGLE DPDT 6A 125V. Review the specifications below when checking this part for your BOM.

Toggle Switches specifications for 3645NF/2

• Description：SWITCH TOGGLE DPDT 6A 125V
• Series：3600NF
• Mfr：APEM Inc.
• Package：Bulk
• Mounting Type：Panel Mount
• Circuit：DPDT
• Switch Function：On-Mom
• Current Rating (Amps)：6A (AC), 12A (DC)
• Voltage Rating - AC：125 V
• Voltage Rating - DC：28 V
• Actuator Type：Standard Round
• Actuator Length：17.50mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Panel Cutout Dimensions：Circular - 12.20mm Dia
• Bushing Thread：M12 x 0.75
• Ingress Protection：-
• Features：Sealed
• Operating Temperature：-40°C ~ 85°C

Toggle Switches datasheet and documents for 3645NF/2
