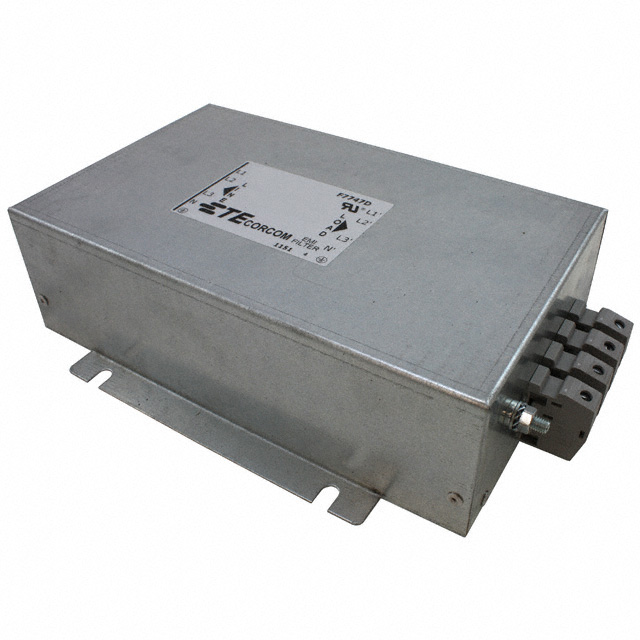

36AYC10B

$279.63

Description：LINE FILTER 36A CHASSIS MOUNT
Series：AYC
Mfr：TE Connectivity Corcom Filters
Package：Bulk

SKU:3ef62ce37ced Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 36A CHASSIS MOUNT
Series：AYC
Mfr：TE Connectivity Corcom Filters
Package：Bulk
Filter Type：Three Phase (Wye)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：36 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：UR
Operating Temperature：-10°C ~ 40°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：277 V
Voltage - Rated AC (Phase to Phase)：480 V

Download product information

36AYC10B

Overview

The TE Connectivity Corcom Filters 36AYC10B is a three-phase (Wye) EMC/EMI power line filter module rated for 36 A at 50/60 Hz. It features single-stage filtering with chassis or flange mounting and terminal block connections.

Feature Summary

Provides EMI/RFI suppression for three-phase Wye configurations
Designed for chassis or flange panel installation
Utilizes terminal block termination style

Applications

Industrial machinery power conditioning
Three-phase equipment noise reduction
EMC compliance in commercial electronics

Procurement Notes

Verify the specific datasheet version as component specifications may evolve. Confirm that the terminal block interface matches your wiring harness requirements. Ensure the chassis mounting dimensions align with your enclosure design constraints before finalizing procurement.

Selection Notes

Select this model when a three-phase Wye configuration is required for 36 A applications. The single-stage design offers standard attenuation suitable for general industrial environments. Verify compatibility with the operating frequency range of 50/60 Hz.

Part Context

This component belongs to the Corcom Filters product line, which specializes in electromagnetic interference suppression solutions. The 36AYC10B represents a specific variant within the broader portfolio of power line filters designed for robust industrial and commercial electrical systems.

Replacement Considerations

Consult official substitution lists for verified equivalents. Generic replacements may not match the specific Wye configuration or terminal block interface requirements.
