36FC10

Overview

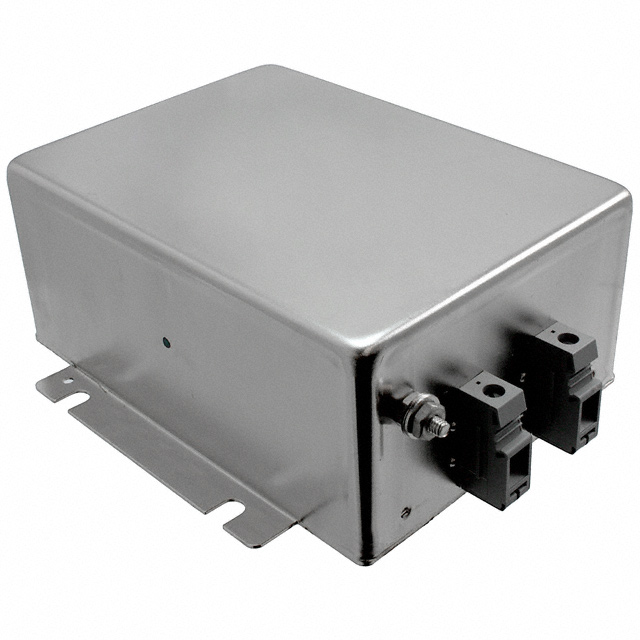

The TE Connectivity Corcom Filters 36FC10 is a single-phase EMC/EMI line filter rated for 36 A at 250 VAC and 50/60 Hz. It features a two-stage configuration with terminal block termination and chassis mount installation. Designed for inverter and power drive systems, it operates within a temperature range of -10°C to 40°C.

Feature Summary

• Two-stage EMI/RFI filtering architecture
• Terminal block termination style
• Chassis mount installation type

Applications

• Frequency inverters
• Variable speed motor drives
• Power drive systems

Procurement Notes

Verify the exact manufacturer part number against official TE Connectivity documentation before procurement. Confirm that the terminal block termination and chassis mount specifications align with your system requirements. Ensure the 36A current rating and 250VAC voltage rating are suitable for your specific application environment.

Selection Notes

Select this component when high-current single-phase filtering is required for industrial drive applications. The two-stage design provides robust noise mitigation for electronically noisy environments. Verify compatibility with terminal block wiring methods and available chassis mounting space.

Part Context

This component belongs to the TE Connectivity Corcom Filters FC series, which specializes in single-phase EMC/EMI line filters. These filters are engineered for demanding industrial applications requiring significant current handling capabilities and effective electromagnetic interference suppression.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
