36FCD10

Overview

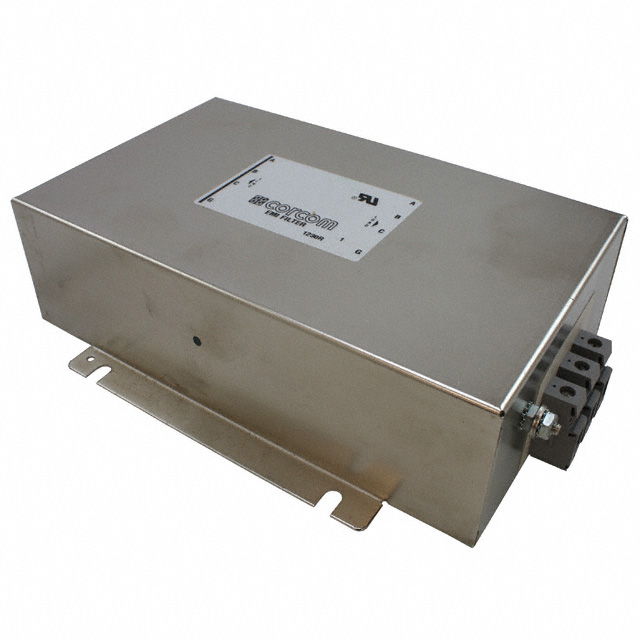

The TE Connectivity Corcom 36FCD10 is a three-phase delta power line filter rated for 36 A and 480 VAC. It operates at 50/60 Hz frequencies and features a two-stage design with terminal block connections. The unit is designed for chassis mounting and provides electromagnetic interference mitigation for industrial applications.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Terminal block connection method for secure wiring
• Chassis mount configuration for stable installation

Applications

• Frequency converters
• Elevators
• Escalators

Procurement Notes

Verify current availability status as the component may be subject to limited supply or discontinuation. Confirm that the terminal block interface matches existing panel layouts. Ensure the 480 VAC rating aligns with the target system voltage requirements before procurement.

Selection Notes

Select this model when a three-phase delta configuration is required for 36 A loads. The terminal block interface suits applications where screw-down connections are preferred over plug-in types. Verify that the chassis mount form factor fits the available enclosure space.

Part Context

This component belongs to the Corcom FCD series of external power line filters. These units are engineered for wideband RFI suppression in industrial environments. The series supports various current ratings while maintaining consistent mounting and connection standards across the product family.

Replacement Considerations

Consult official substitution lists for compatible alternatives. Verify that any replacement maintains the 36 A rating, 480 VAC operation, and three-phase delta topology. Ensure interface compatibility with existing terminal block wiring schemes.
