36KEMS10AFPD

Overview

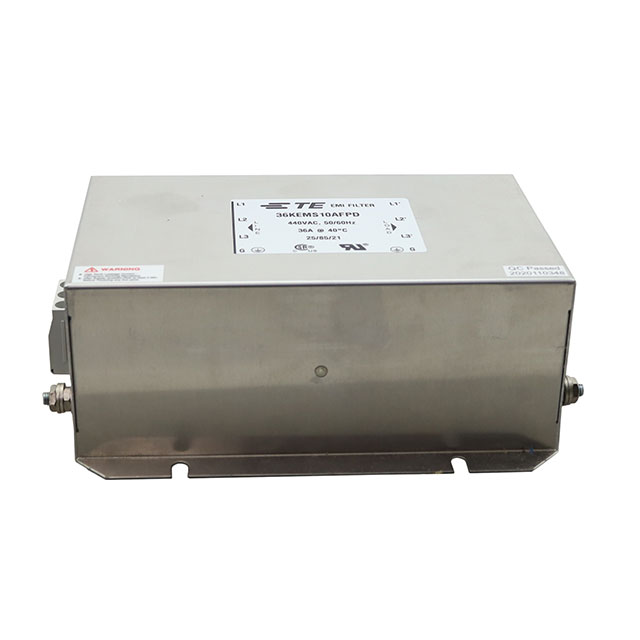

The 36KEMS10AFPD is a three-phase superior performance EMI filter manufactured by TE Connectivity / Corcom. It features a chassis mount design with dimensions of 202 mm in length, 120 mm in width, and 80 mm in height. The unit supports a rated voltage of 440 VAC and a current rating of 36 A at operating frequencies of 50 Hz and 60 Hz. Termination is achieved via quick connect and screw terminals. The component has a maximum leakage current of 18 mA and operates within a temperature range of -25 C to +85 C. It holds UL and CSA compliance certifications.

Feature Summary

• Provides superior performance electromagnetic interference filtering for three-phase delta configurations
• Utilizes a robust chassis mount construction suitable for industrial power conditioning environments
• Offers dual termination options combining quick connect and screw connections for flexible integration

Applications

• Industrial machinery power entry modules
• Three-phase motor drive systems
• Commercial building infrastructure power distribution

Procurement Notes

Verify the active status of this component as it may be subject to discontinuation or limited availability. Confirm that the specific termination style matches your assembly requirements. Ensure that the physical dimensions fit the designated chassis space. Check for updated regulatory compliance documentation before finalizing procurement decisions.

Selection Notes

Select this model when a three-phase EMI filter is required for 440 VAC systems carrying up to 36 A. Consider the chassis mount form factor if panel installation is necessary. Evaluate the leakage current specification against safety standards. Compare the physical footprint against available enclosure space to ensure proper fitment.

Part Context

This component belongs to the KEM series of power line filters from TE Connectivity / Corcom. The series is designed for high-performance noise suppression in demanding electrical environments. The part number alias 1-1609967-6 may appear in internal documentation. It falls under the broader category of power condition components used for maintaining signal integrity in power lines.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult the manufacturer's official documentation for cross-reference information or contact technical support for approved alternatives.
