36KEMS10BFPD

Overview

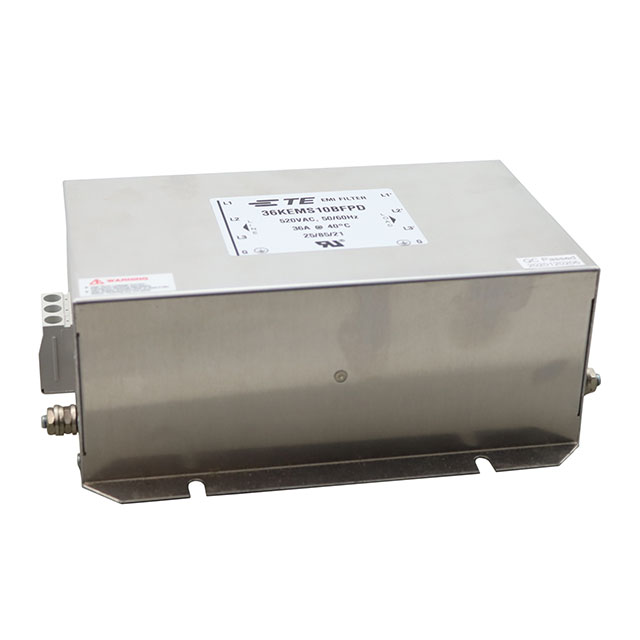

The 36KEMS10BFPD is a three-phase superior performance EMI filter manufactured by TE Connectivity Corcom. It features a Delta configuration with terminal block input and output connections, designed for chassis mounting. The unit supports a voltage rating of 520 VAC and a current rating of 36 A at an operating frequency of 50 Hz or 60 Hz. It exhibits a leakage current of 18 mA and operates within a temperature range of -25°C to +85°C. Physical dimensions are 202 mm in length, 120 mm in width, and 80 mm in height.

Feature Summary

• Provides superior electromagnetic interference mitigation for three-phase power lines
• Utilizes terminal block connections for secure electrical termination
• Engineered for robust operation in industrial environments

Applications

• Industrial automation systems
• Climate control equipment
• Three-phase motor drives

Procurement Notes

Verify component authenticity through authorized TE Connectivity channels due to end-of-life status. Confirm specific revision levels against official datasheets before integration. Ensure compatibility with existing chassis mounting hardware and terminal block specifications. Validate regulatory compliance requirements for the target deployment region.

Selection Notes

Select this model for applications requiring high-current three-phase filtering with terminal block interfaces. Compare against similar KEM series variants based on exact current ratings and voltage tolerances. Evaluate physical space constraints against the specified chassis mount dimensions. Consider thermal management requirements given the operational temperature limits.

Part Context

This component belongs to the Corcom KEM series of power line filters, designed for demanding industrial EMC/EMI applications. The series offers various current ratings and connection types to suit different power distribution needs. As part of the TE Connectivity portfolio, it adheres to established quality standards for electronic components used in critical infrastructure.

Replacement Considerations

Public documentation indicates this part number is obsolete and subject to discontinuation. Verify availability of direct substitute part numbers from the manufacturer's official transition notices. Cross-reference technical specifications carefully when evaluating alternative components.
