Product Detailed Parameters
- Description：LINE FILTER 440VAC 36A CHASS MNT
- Series：KEP
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：36 A
- Frequency - Operating：50/60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

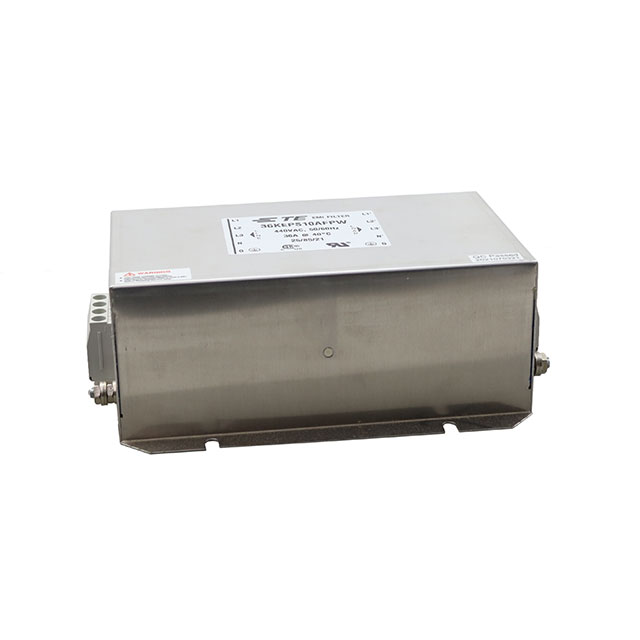

The 36KEPS10AFPW is a three-phase EMI/EMC power line filter from the TE Connectivity Corcom KEP series. It features a WYE configuration with a 440 VAC voltage rating and a 36 A current capacity. Designed for chassis mounting, it utilizes terminal block connections and operates at 50 Hz or 60 Hz. The unit has dimensions of 202 mm in length, 135 mm in width, and 80 mm in height. It supports an operating temperature range from -25°C to +85°C and exhibits a leakage current of 8.5 mA.
Feature Summary
- Provides superior performance electromagnetic interference filtering for three-phase power lines
- Engineered for secure chassis mounting applications
- Utilizes terminal block termination for reliable electrical connection
Applications
- Industrial machinery power conditioning
- Three-phase equipment noise suppression
- Electrical panel EMC compliance
Procurement Notes
Verify component authenticity through authorized channels as this part may be subject to discontinuation. Confirm technical specifications against official datasheets prior to integration. Ensure compatibility with existing chassis mounting hardware and terminal block requirements. Check for updated regulatory compliance documentation such as RoHS and REACH status before procurement.
Selection Notes
Select this model for applications requiring 36 A continuous current handling in three-phase systems. Ensure the installation environment remains within the specified -25°C to +85°C operational temperature range. Verify that the 440 VAC rating matches the system voltage. Confirm that terminal block wiring methods align with the design constraints.
Part Context
This component belongs to the KEP series of power line filters manufactured by TE Connectivity under the Corcom brand. The series is designed for industrial power conditioning and noise reduction. The specific suffix indicates a WYE configuration with terminal block terminals and a 440 VAC rating.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult manufacturer resources for potential obsolescence management strategies.
