Product Detailed Parameters
- Description：LINE FILTER 520VAC 36A CHASS MNT
- Series：KEP
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：36 A
- Frequency - Operating：50/60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

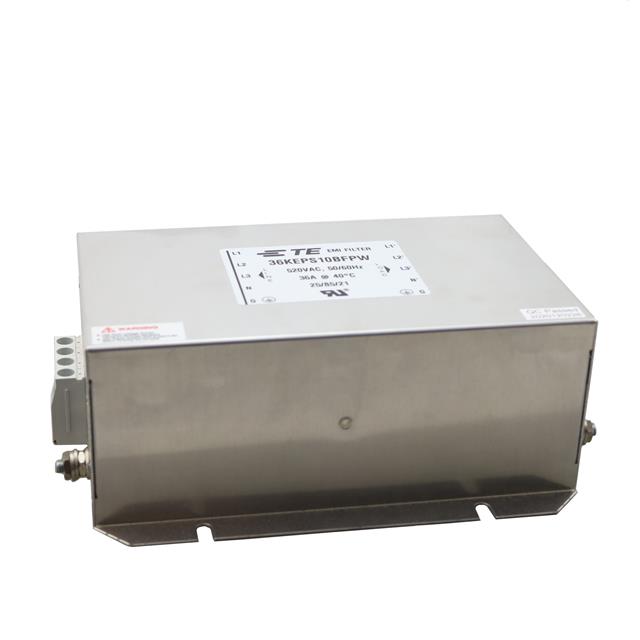

The 36KEPS10BFPW is a three-phase superior performance EMI filter from the TE Connectivity Corcom KEP series, rated for 36 A and 520 VAC. Designed for chassis mounting, it features terminal block termination and operates at 50 Hz or 60 Hz. The unit measures 202 mm in length, 135 mm in width, and 80 mm in height, with an operating temperature range of -25 °C to +85 °C. It exhibits a leakage current of 8.5 mA and holds UL, CSA, and VDE compliance certifications.
Feature Summary
- Single-stage three-phase EMI/EMC filtering capability
- Chassis mount construction with flanged design
- Terminal block electrical termination
Applications
- Industrial power conditioning systems
- Three-phase equipment requiring EMI suppression
- Electrical enclosures needing chassis-mounted filtration
Procurement Notes
Verify component authenticity through authorized channels due to potential availability constraints. Confirm technical specifications against official datasheets prior to integration. Ensure mechanical dimensions and terminal configurations match existing system requirements. Check for end-of-life status or discontinuation notices before finalizing procurement decisions.
Selection Notes
Select this model when a single-stage solution is sufficient for three-phase noise reduction. Verify that the 36 A current rating aligns with load requirements. Ensure chassis mounting space accommodates the specified physical dimensions. Confirm compatibility with 520 VAC systems and required safety certifications.
Part Context
This component belongs to the Corcom KEP series of power line filters manufactured by TE Connectivity. The series provides electromagnetic interference suppression for industrial applications. The specific part number indicates a 36 A rating, 520 VAC voltage class, and terminal block termination style within the three-phase lineup.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer resources for direct replacements or updated equivalents.
