Product Detailed Parameters
- Description：LINE FILTER 480VAC CHASSIS MOUNT
- Series：TYT
- Mfr：Delta Electronics
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：480V
- Current：-
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：-
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：950µH
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

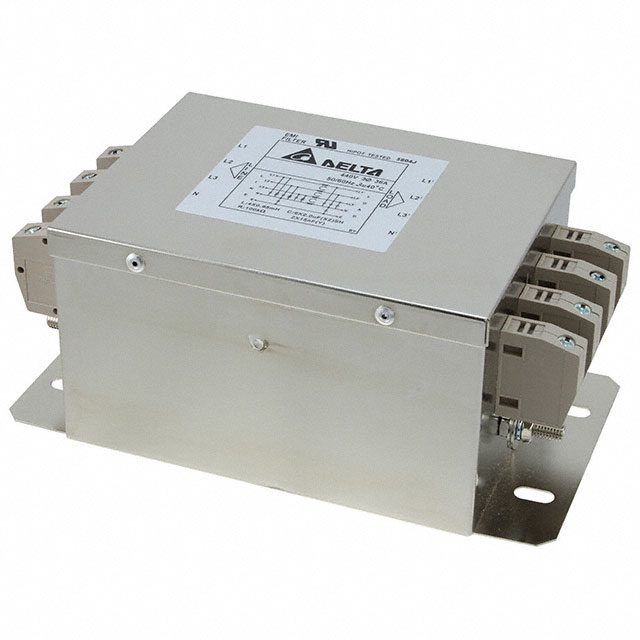

The Delta Electronics 36TYT8 is a three-phase, four-wire EMC/EMI line filter designed for industrial power applications. It operates at a rated voltage of 480VAC and supports a current rating of 36A. The unit functions as a single-stage filter suitable for 50/60Hz systems. It utilizes a chassis mount configuration with terminal block connections for secure installation.
Feature Summary
- Provides electromagnetic interference suppression for three-phase power lines
- Designed for chassis mounting with terminal block interface
- Single-stage filtering architecture for noise reduction
Applications
- Industrial machinery power conditioning
- Three-phase motor drive input protection
- Factory automation equipment noise mitigation
Procurement Notes
Verify the specific part number suffix against official Delta Electronics documentation to confirm exact electrical ratings and terminal configurations. Ensure compatibility with the target system's voltage and current requirements before procurement. Cross-reference datasheet specifications to validate performance parameters for the intended application environment.
Selection Notes
Select this component when a three-phase, four-wire configuration is required for 480VAC systems. Confirm that the 36A current rating meets the load demands. Verify chassis mounting space availability and terminal block wiring constraints during the design phase to ensure proper integration.
Part Context
This component belongs to Delta Electronics' series of high-performance three-phase filters. These units are engineered to meet stringent electromagnetic compatibility standards in industrial environments. The product line focuses on reliable noise suppression for sensitive electronic loads connected to three-phase power networks.
Replacement Considerations
Consult official Delta Electronics substitution guides for verified equivalent models. Ensure replacement parts maintain identical phase configuration, voltage ratings, and mounting styles to preserve system integrity and compliance.
