Product Detailed Parameters

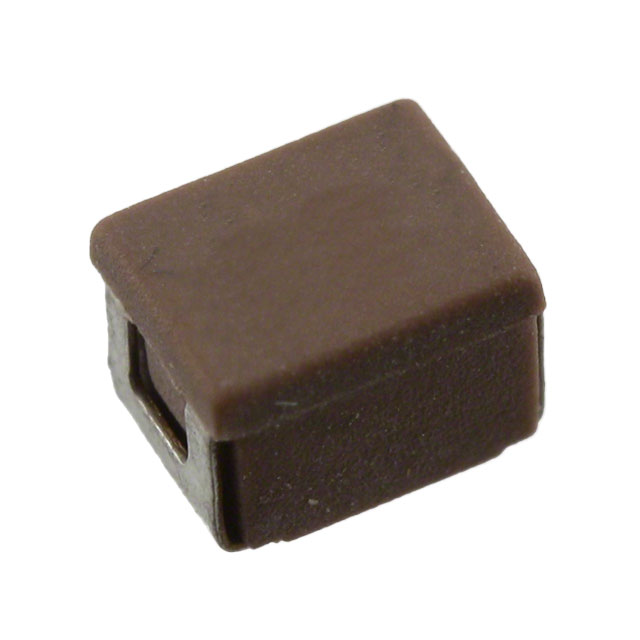

- Description：FIXED IND 68NH 320MA 290MOHM SMD
- Series：32CS
- Mfr：Toko America Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：-
- Material - Core：Ferrite
- Inductance：68 nH
- Tolerance：±20%
- Current Rating (Amps)：320 mA
- Current - Saturation (Isat)：-
- Shielding：Unshielded
- DC Resistance (DCR)：290mOhm Max
- Q @ Freq：26 @ 100MHz
- Frequency - Self Resonant：550MHz
- Ratings：-
- Operating Temperature：-25°C ~ 85°C
- Inductance Frequency - Test：100 MHz
- Mounting Type：Surface Mount
- Package / Case：1210 (3225 Metric)
- Supplier Device Package：-
- Size / Dimension：0.134" L x 0.106" W (3.40mm x 2.70mm)
- Height - Seated (Max)：0.094" (2.40mm)
- Features：-
Download product information
Overview
The 380NB-68NM=P2 is a fixed surface-mount inductor from the 32CS series manufactured by Toko America Inc. It features an unshielded design with a ferrite core, housed in a 1210 (3225 Metric) package. The component provides an inductance of 68 nH with a tolerance of ±20%. It supports a maximum DC current of 320 mA and has a maximum DC resistance of 290 mOhm. The Q factor is rated at 26 at 100 MHz. This part is RoHS non-compliant and contains lead.
Feature Summary
- Unshielded construction for minimal magnetic interference
- Ferrite core material for stable inductance
- Surface-mount packaging for automated assembly
Applications
- RF circuit filtering
- High-frequency signal processing
- Impedance matching networks
Procurement Notes
Verify compliance requirements as this component is RoHS non-compliant and contains lead. Confirm availability status since the product may be obsolete. Ensure the 1210 package footprint matches the PCB layout. Check datasheet for specific handling instructions regarding the unshielded design.
Selection Notes
Select this inductor for applications requiring low inductance values around 68 nH. Consider the 320 mA current rating to prevent saturation. The unshielded type requires careful placement to avoid coupling with nearby components. Verify the 290 mOhm resistance meets power loss constraints.
Part Context
This component belongs to the 32CS series of fixed inductors. It is designed for general electronic applications where small form factor is critical. The 1210 package allows for compact circuit board designs. Toko America Inc. produces this line for various market segments.
Replacement Considerations
Cross-reference with Bourns Inc. part number 9250-683 for potential compatibility. Verify electrical parameters and physical dimensions before substitution.
