387-012-520-603

Edgeboard Connectors Overview

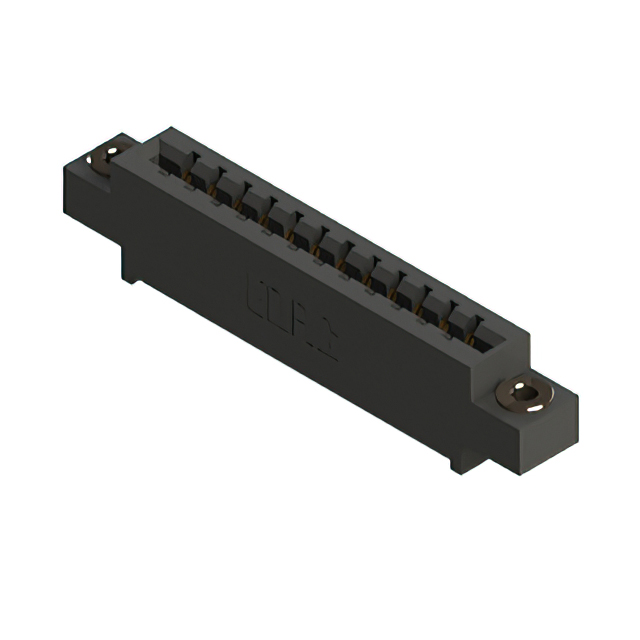

The EDAC Inc. 387-012-520-603 is a single-row card edge connector designed for through-hole termination. It features 12 female positions with a 0.156-inch (3.96mm) contact spacing. The unit utilizes gold-plated contacts and a black thermoplastic polyester insulator. It supports board thicknesses between 0.054 and 0.070 inches, operates within -40°C to 105°C, and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Single-edge female configuration for standard card edge applications
• Gold-plated cantilever spring contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides thermal stability and insulation
• Through-hole solder termination facilitates secure PCB mounting

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Consumer electronic circuit boards
• Medical device internal connections

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm current availability and compliance status. Ensure that the procurement channel provides authentic components with valid traceability records. Cross-reference the ordering guide for any updates regarding packaging quantities or lead times before finalizing purchase orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with 12 positions is required. Confirm that the target printed circuit board thickness falls within the specified range of 0.054 to 0.070 inches. Verify that the application environment remains within the operational temperature limits and that the mating card specifications align with the connector design.

Edgeboard Connectors Part Context

This component belongs to the EDAC 387 series, which specializes in high-reliability card edge connectors. The series offers various pin counts and configurations to support diverse electronic assembly needs. The 387 series is recognized for its robust mechanical design and consistent electrical performance across industrial and commercial sectors.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 387 Series Ordering Guide for verified substitute part numbers. Ensure that any replacement maintains identical pin count, spacing, and termination style to guarantee mechanical and electrical compatibility.
