Edgeboard Connectors Overview

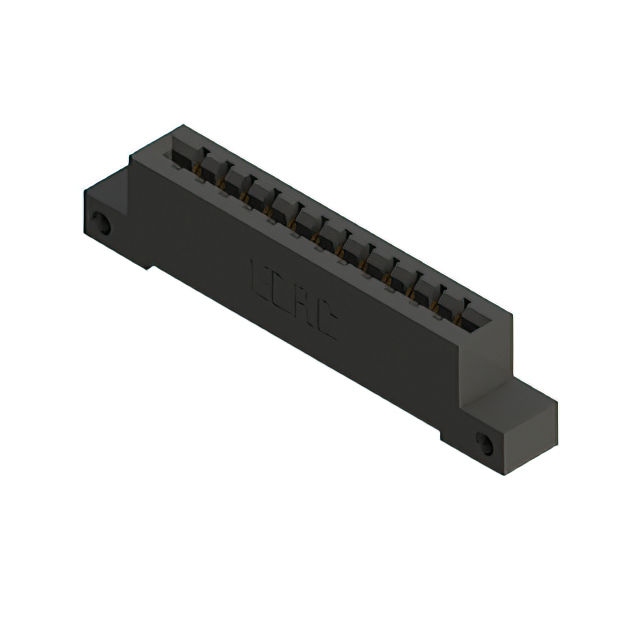

The EDAC Inc. 387-012-523-112 is a single-row female card edge connector featuring 12 positions with a 0.156-inch (3.96mm) contact spacing. Designed for through-hole mounting, it utilizes gold-plated cantilever contacts to ensure reliable signal transmission. The unit accommodates board thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Features gold-plated cantilever contacts for secure mating
• Includes flanges with side-mounting holes for panel installation
• Constructed with thermoplastic polyester insulation

Edgeboard Connectors Applications

• Industrial control systems
• Medical equipment interfaces
• Telecommunications hardware

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count and flange configuration. Ensure compatibility with target PCB thickness specifications before procurement. Cross-reference RoHS compliance status with current regulatory requirements for the intended deployment region.

Edgeboard Connectors Selection Notes

Select this component when a single-edge female connector with 12 pins and 0.156-inch spacing is required. It is suitable for applications needing through-hole termination and side-mounted flange support. Verify that the operating temperature range meets environmental demands.

Edgeboard Connectors Part Context

This part belongs to the EDAC 387 series of standard card edge connectors. The series offers various position counts and contact configurations designed for robust interconnection in demanding electronic environments. The 387-012 variant specifically addresses needs for twelve-channel connectivity.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC ordering guide for direct substitutes within the 387 series. Verify mechanical dimensions and electrical ratings match before considering alternative part numbers.
