387-012-524-658

Edgeboard Connectors Overview

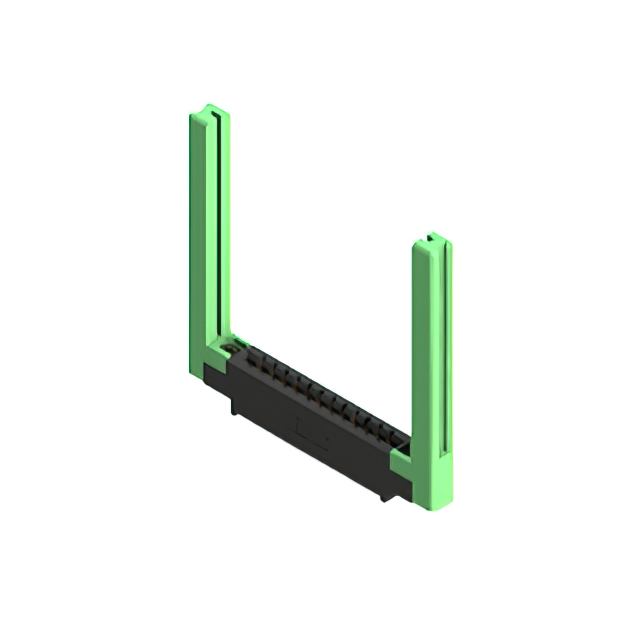

The EDAC Inc. 387-012-524-658 is a single-row, female card edge connector from the 387 Series. It features 12 positions with a 0.156-inch (3.96mm) pitch. Designed for through-hole mounting, it utilizes copper alloy contacts with gold plating and a thermoplastic polyester housing. The connector supports PCB thicknesses of 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Single-edge female contact configuration for standard card edge applications
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester insulation provides structural stability
• Through-hole termination facilitates secure board integration

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Consumer electronics module connections
• Automotive electronic circuit interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 387 Series Ordering Guide to confirm flange type and contact finish. Ensure compatibility with target PCB thickness specifications before procurement. Cross-reference the DigiKey part number 151-387-021-524-608-ND if alternative sourcing is required, noting potential variations in packaging or lead times.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 12-position interface is required with a 3.96mm pitch. Confirm that the target application accommodates the specified 0.054 to 0.070 inch PCB thickness range. Evaluate thermal requirements against the -40°C to 105°C operating limit. Consider the through-hole mounting style for mechanical stability in the final assembly design.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 387 Series, which offers various position counts and flange configurations. The series is characterized by its robust construction and standardized spacing, making it suitable for general-purpose interconnect needs across multiple industries. Similar parts in the series vary primarily by pin count and mechanical mounting features.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult the manufacturer's cross-reference guide for compatible alternatives.
