Edgeboard Connectors Overview

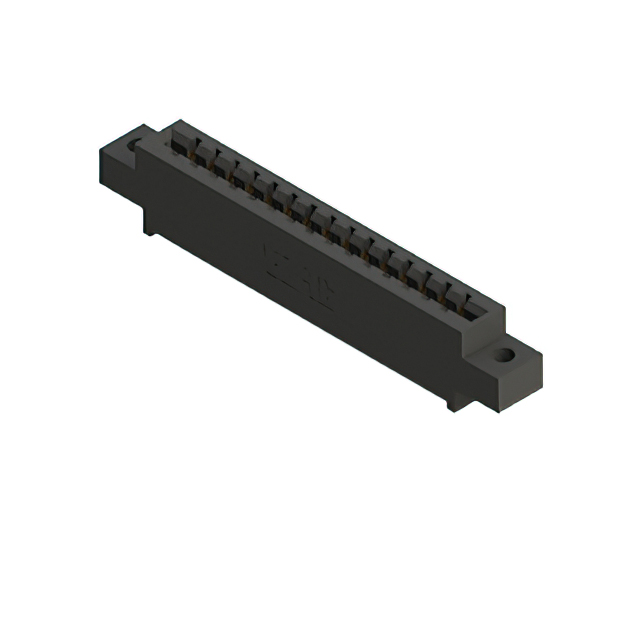

The EDAC Inc. 387-015-541-604 is a standard card edge connector receptacle from the 387 series. It features 15 positions with a 3.96 mm pitch and supports a single row configuration. Designed for panel mount installation, it utilizes wire wrap termination and gold-plated copper alloy contacts. The housing is constructed from Diallyl Phthalate (DAP) to accommodate PCB thicknesses of 1.57 mm. Rated for 5 A current, it operates within a temperature range of -65°C to +125°C and provides an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Vertical panel mount receptacle design for secure board insertion
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Wire wrap termination method facilitates robust circuit connections
• High-temperature DAP housing material supports extreme operating environments

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Medical device circuit boards
• Energy sector instrumentation modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm contact plating thickness and housing color variations. Ensure the selected variant matches the required PCB thickness tolerance of 1.57 mm. Confirm RoHS compliance status through the manufacturer's latest environmental declarations before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a vertical, single-row card edge interface with wire wrap termination is required. The 3.96 mm pitch and 15-position count define the physical footprint. Consider the high-temperature rating and DAP material if the application exceeds standard polyester limits. Verify that the 5 A current rating meets the circuit load requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 387 series, which offers various card edge connectors with 3.96 mm spacing. The series includes different row counts, termination styles, and housing materials. The 387-015-541-604 specifically represents a 15-position variant optimized for panel mounting and high-temperature durability compared to standard industrial alternatives.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 387 series variants such as 387-015-520-604 for potential pinout or termination differences. Verify mechanical compatibility with existing panel cutouts and PCB stack-ups before substitution.
