387-022-559-268

Edgeboard Connectors Overview

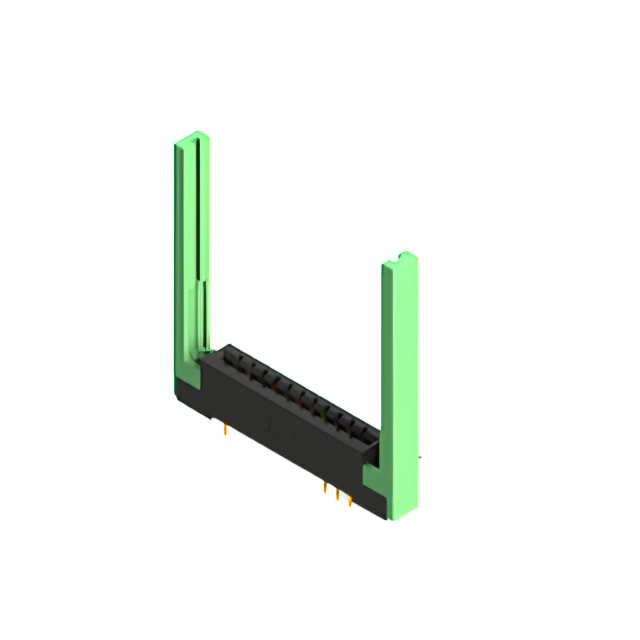

The EDAC Inc. 387-022-559-268 is a dual-row female card edge connector from the 387 Series, designed for straddle mount installation via solder pin termination. It features 22 positions with a 0.156-inch (3.96mm) contact spacing and 0.200-inch (5.08mm) row spacing. The unit accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). Constructed with thermoplastic polyester insulation and copper alloy contacts, it offers gold plating on mating areas and tin plating on tails. Rated for 3 amps at 1800 V AC rms, it operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-row female configuration with high-profile insulator body providing 0.600-inch card slot depth
• Accepts standard 0.062-inch nominal thickness PCBs with single or dual row configurations
• Gold-plated mating area ensures reliable signal transmission while tin-plated tails facilitate soldering

Edgeboard Connectors Applications

• High-density electronic assemblies requiring robust board-to-board connections
• Industrial control systems operating in extreme temperature environments
• Communication equipment utilizing standard card edge interface protocols

Edgeboard Connectors Procurement Notes

Verify that the specific ordering suffix matches the required row count and mounting style. Confirm RoHS compliance status if restricted substances are prohibited in the target assembly. Ensure the PCB thickness falls within the specified acceptance range to guarantee proper mechanical retention and electrical contact during operation.

Edgeboard Connectors Selection Notes

Select this component when a dual-row female connection is required for 0.062-inch thick boards. The 0.156-inch pitch allows for higher density compared to larger spacing options. Consider the straddle mount style for applications needing secure lateral stability without panel mounting hardware.

Edgeboard Connectors Part Context

This part belongs to the EDAC 387 Series, which provides versatile card edge connectivity solutions. The series supports various mounting options including flush or offset lugs and accommodates polarizing keys. It is widely utilized across industrial and commercial sectors for its reliability and standardized dimensions.

Edgeboard Connectors FAQ

What is the maximum current rating for this connector?

The connector has a current rating of 3 amps.

Does this connector support polarizing keys?

Yes, the design accepts between-contact and in-contact polarizing keys to prevent misalignment.
