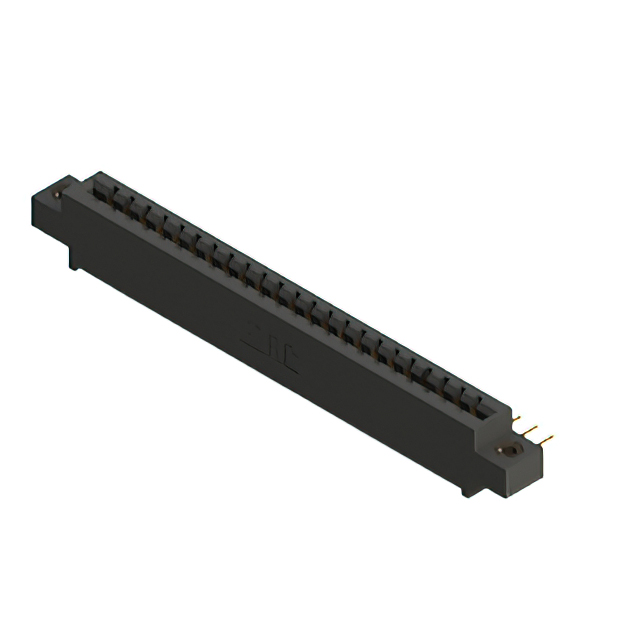

387-023-559-607 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 23POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 387-023-559-607
- Description：CONN EDGE SGL FMALE 23POS 0.156
- Series：387
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：23
- Number of Positions：23
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.156" (3.96mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole, Right Angle
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Top Mount Opening, Threaded Insert, M3
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 387-023-559-607
Edgeboard Connectors Overview
The EDAC Inc. 387-023-559-607 is a single-row female card edge connector designed for through-hole termination. It features 23 positions with a 0.156-inch (3.96 mm) contact spacing and accepts board thicknesses between 0.054 and 0.070 inches. The contacts are made of copper alloy with a gold plating finish, housed in black thermoplastic polyester insulation. This component supports a wide operating temperature range from -40°C to +105°C.
Edgeboard Connectors Feature Summary
- Utilizes cantilever spring contacts for reliable card insertion
- Features a flange with top mounting opening for secure installation
- Constructed with durable thermoplastic polyester housing
Edgeboard Connectors Applications
- Industrial control system backplanes
- Telecommunications equipment interconnects
- Consumer electronics module connections
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against the official EDAC 387 Series Ordering Guide to ensure compatibility with required flange configurations and termination styles. Confirm that the selected variant matches the intended PCB thickness and mounting orientation requirements before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this connector when a single-row interface with 0.156-inch pitch is required for non-specified cards. Ensure the design accommodates the specified board thickness range and utilizes through-hole soldering methods. Consider the thermal rating and environmental compliance if deployed in harsh operational conditions.
Edgeboard Connectors Part Context
This component belongs to the EDAC 387 series of standard card edge connectors. The series provides various position counts and termination options for general-purpose electronic applications. The 387-023-559-607 specifically addresses needs for 23-position single-edge interfaces with robust mechanical retention.
Edgeboard Connectors Replacement Considerations
Consult the EDAC 387 Series Ordering Guide for alternative part numbers within the same family. Verify dimensional compatibility and electrical specifications before substituting with other manufacturers' products.
