Edgeboard Connectors Overview

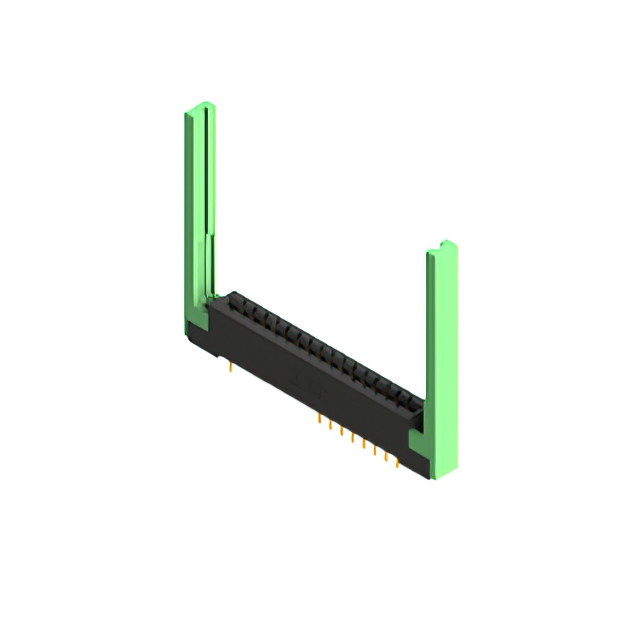

The EDAC Inc. 387-032-541-268 is a standard card edge connector designed for through-hole mounting. It features a dual female configuration with 32 positions arranged in two rows. The contact pitch is 0.156 inches (3.96 mm), and the contacts are gold-plated copper alloy with a thickness of 10.0 µin (0.25 µm). The housing is black thermoplastic polyester, supporting PCB thicknesses from 0.054 to 0.070 inches. It operates within a temperature range of -40°C to +105°C and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for non-specified card applications
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester insulation provides thermal stability
• Through-hole termination supports secure board attachment

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Test and measurement instrument interfaces

Edgeboard Connectors Procurement Notes

Verify that the specific ordering suffix matches the required pin count and termination style. Confirm compliance with RoHS3 regulations if environmental restrictions apply. Ensure the PCB thickness falls within the specified operational range to maintain proper contact engagement. Cross-reference the manufacturer part number against official distributor catalogs to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 0.156-inch pitch is required. Consider the through-hole mounting method and gold plating for durability. Evaluate the operating temperature range and insulation material compatibility with the assembly environment. Compare against other series members if different pin counts or termination types are needed.

Edgeboard Connectors Part Context

This component belongs to the EDAC 387 Series, which offers various standard card edge connectors. The series includes options with different pin counts, row configurations, and termination styles. The 387-032-541-268 specifically addresses needs for 32-position dual-edge connections with through-hole mounting capabilities.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include 387-032-541-212 and 387-032-541-603. Verify that alternative part numbers match the exact pin count, pitch, and termination requirements before substitution.
