Edgeboard Connectors Overview

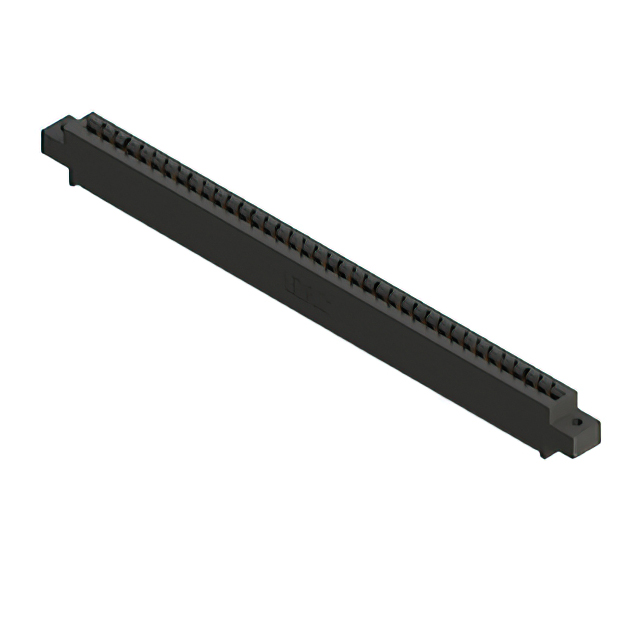

The EDAC Inc. 387-037-544-602 is a single-row card edge connector from the 387 Series, designed for through-hole mounting. It features 37 female contacts with a 0.156-inch (3.96 mm) pitch and gold plating. The connector accommodates board thicknesses between 0.054 and 0.070 inches. Constructed with thermoplastic polyester insulation and copper alloy terminals, it operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Single-edge female contact configuration for standard card edge applications
• Gold-plated cantilever spring contacts ensure reliable signal transmission
• Through-hole termination method provides secure PCB attachment

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Consumer electronic circuit boards
• Medical device internal connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the official EDAC 387 Series Ordering Guide to confirm flange dimensions and termination style. Ensure compatibility with target PCB thickness specifications before procurement. Cross-reference manufacturer part numbers with distributor identifiers to prevent ordering errors due to similar series designations.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with 37 positions is required. Confirm that the 0.156-inch pitch matches the board layout. Verify that the through-hole termination aligns with assembly capabilities. Check that the operating temperature range meets environmental requirements for the intended application scenario.

Edgeboard Connectors Part Context

This part belongs to the EDAC 387 Series, which offers various pin counts and termination options. The series utilizes a consistent 0.156-inch spacing across models. The 387-037 variant specifically addresses higher-density single-row needs compared to lower-pin counterparts in the same family.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 387 Series Ordering Guide for direct substitutes with identical electrical and mechanical parameters. Verify that alternative parts maintain the same 0.156-inch pitch and single-row configuration.
