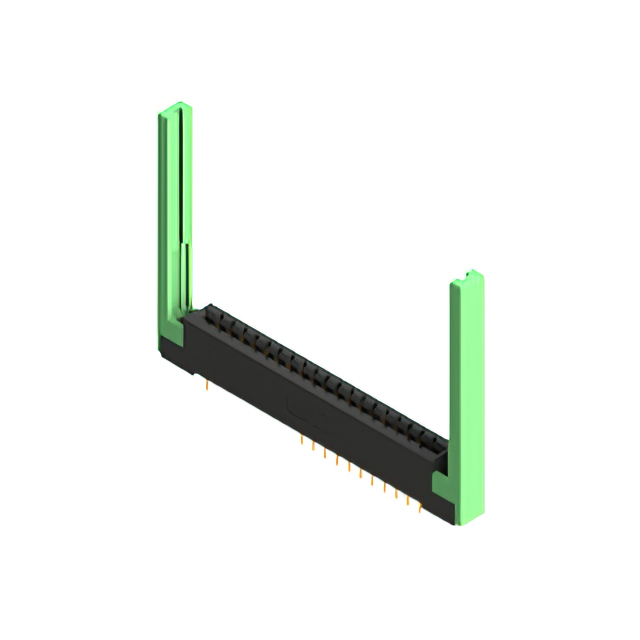

387-038-524-268 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 38POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 387-038-524-268
- Description：CONN EDGE DUAL FMALE 38POS 0.156
- Series：387
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：19
- Number of Positions：38
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 387-038-524-268
Edgeboard Connectors Overview
The EDAC Inc. 387-038-524-268 is a card edge connector from the 387 series, designed for vertical through-hole mounting. It features 38 positions arranged in two rows with a 0.156-inch (3.96mm) pitch. The connector accepts dual-edge cards with thicknesses ranging from 0.054 to 0.070 inches. Contacts are made of copper alloy with gold plating and utilize a cantilever spring design. The housing is black thermoplastic polyester, rated for operation between -40°C and +105°C.
Edgeboard Connectors Feature Summary
- Dual-edge female contact configuration for secure board insertion
- Cantilever spring contact mechanism ensures reliable electrical connection
- Gold-plated contacts provide corrosion resistance and low contact impedance
- Thermoplastic polyester insulation supports high-temperature environments
Edgeboard Connectors Applications
- Industrial control system backplanes
- Telecommunications equipment interconnects
- Medical device circuit board connections
- Consumer electronics module interfaces
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer's official 387 Series Ordering Guide to confirm flange type and termination style. Ensure compatibility with the target PCB stack-up and card thickness specifications before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a dual-edge interface is required for the application. Confirm that the PCB layout accommodates the 0.156-inch pitch and that the mechanical constraints allow for the specified vertical mounting orientation and flange features.
Edgeboard Connectors Part Context
This part belongs to the EDAC 387 series of standard card edge connectors. The series offers various position counts and configurations to support diverse electronic assembly requirements across multiple industry sectors.
Edgeboard Connectors Replacement Considerations
Consult the official EDAC cross-reference documentation for verified substitute part numbers. Do not assume interchangeability with generic connectors due to specific dimensional and material requirements.
