387-060-558-204

Edgeboard Connectors Overview

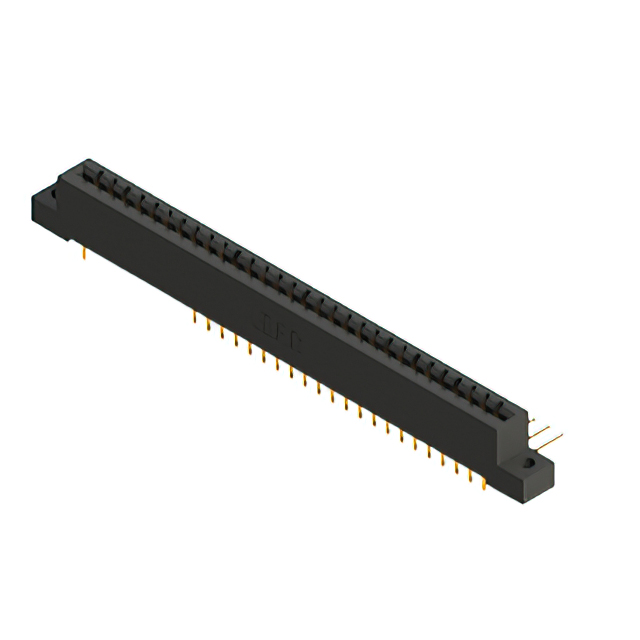

The EDAC Inc. 387-060-558-204 is a standard card edge connector from the 387 series, designed for dual-edge female termination. It features 60 positions with a 0.156-inch (3.96mm) pitch and gold-plated contacts. The unit supports PCB thicknesses of 0.054 to 0.070 inches and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy contacts for reliable signal transmission
• Thermoplastic polyester insulation housing for durability
• Flanged design with mounting provisions for stable installation

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules
• Computing hardware peripheral connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 387 Series Ordering Guide to ensure correct flange and termination specifications. Confirm RoHS compliance status and environmental certifications prior to final procurement decisions. Cross-reference the DigiKey part number 151-387-060-558-204 for accurate supply chain tracking.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided card edge interface is required for high-density applications. Ensure the target printed circuit board thickness falls within the specified 0.054 to 0.070-inch range. Verify that the mechanical footprint aligns with the 0.156-inch pitch requirement for compatible mating connectors.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 387 series, which provides standardized solutions for card edge applications. The series offers various position counts and termination styles. The 387-060 variant specifically addresses needs for moderate-to-high pin count interfaces in rugged environments requiring robust mechanical retention.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 387 Series cross-reference documentation for verified substitute part numbers. Ensure any replacement maintains identical pitch, row configuration, and flange characteristics to preserve mechanical compatibility.
