387-062-523-812

Edgeboard Connectors Overview

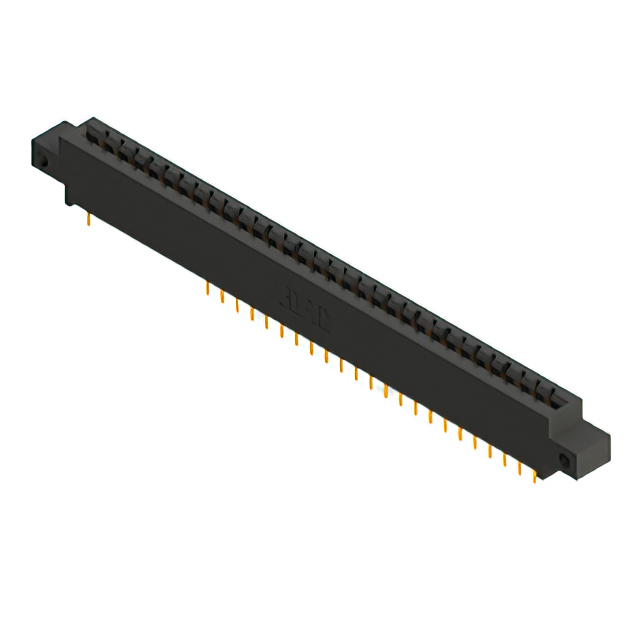

The EDAC Inc. 387-062-523-812 is a card edge connector from the 387 Series, designed for vertical through-hole mounting. It features 62 positions with a 0.156-inch (3.96mm) pitch and dual-edge contact configuration. The connector utilizes gold-plated copper alloy contacts with a 10.0µin thickness and black thermoplastic polyester insulation. It supports PCB thicknesses of 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female socket design for secure board retention
• Gold-plated cantilever spring contacts ensure reliable signal transmission
• Vertical through-hole termination for stable PCB integration

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Medical device circuit board assemblies

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 387 Series Ordering Guide to confirm pin count, plating thickness, and flange specifications. Ensure compatibility with target PCB stack-up dimensions and verify RoHS compliance status prior to final procurement approval.

Edgeboard Connectors Selection Notes

Select this component when a high-density dual-edge interface is required with a standard 0.156-inch pitch. Consider the vertical mounting profile and through-hole termination method for applications requiring robust mechanical stability and high cycle durability in industrial environments.

Edgeboard Connectors Part Context

This part belongs to the EDAC 387 Series, which provides standardized card edge connectors for various electronic applications. The series offers multiple position counts and configurations, utilizing consistent dimensional standards and material properties to ensure interchangeability and reliability across different product lines.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference documentation for verified substitute part numbers. Do not assume functional equivalence with generic competitors without verifying dimensional and electrical parameters.
