387-076-560-878

Edgeboard Connectors Overview

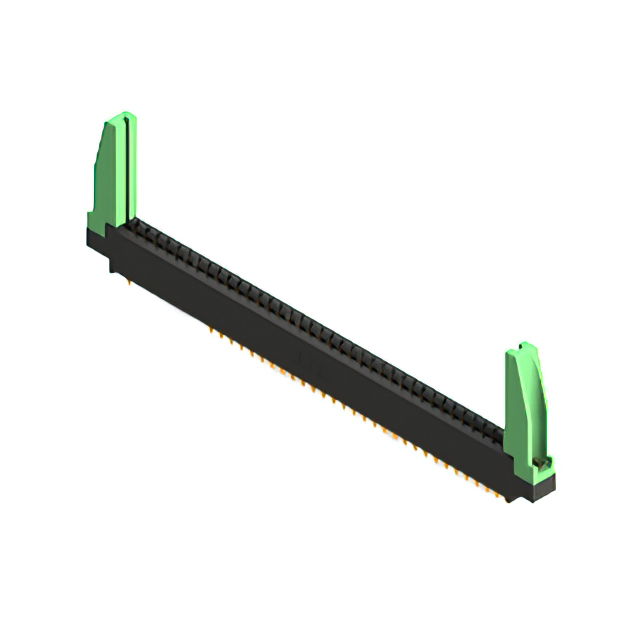

The EDAC Inc. 387-076-560-878 is a dual-edge female card edge connector featuring 76 positions with a 0.156-inch (3.96 mm) spacing. Designed for non-specified dual-edge cards, it utilizes gold-plated contacts and a black thermoplastic polyester insulator. The unit supports panel mount installation with right-angle termination and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• Dual-edge receptacle design accommodates non-specified double-sided circuit boards
• Gold-plated contact surfaces ensure reliable signal transmission
• High-temperature resistant polyphenylene sulfide or thermoplastic housing
• Right-angle panel mount configuration for secure board retention

Edgeboard Connectors Applications

• Industrial control system interconnects
• Medical device internal module connections
• Telecommunications equipment backplanes
• Consumer electronics mainboard interfaces

Edgeboard Connectors Procurement Notes

Verify the specific insulation material specification against the official datasheet, as variations exist between thermoplastic polyester and polyphenylene sulfide within this series. Confirm that the right-angle panel mount orientation matches the mechanical assembly requirements. Ensure the operating temperature rating aligns with the environmental conditions of the target application before finalizing procurement.

Edgeboard Connectors Selection Notes

Select this component when a high-temperature rated, right-angle dual-edge connector is required for robust industrial or medical applications. The 0.156-inch pitch suits standard thick PCB designs. Evaluate the need for the specific 125°C thermal rating over standard 105°C variants to ensure adequate performance margins in heated environments.

Edgeboard Connectors Part Context

This part belongs to the EDAC 387 series of standard card edge connectors. The series provides various position counts and mounting styles. This specific model represents a high-temperature variant suitable for demanding environments, distinguishing it from standard series components through its enhanced thermal capabilities and specific panel mount geometry.

Edgeboard Connectors Replacement Considerations

Cross-reference with EDAC 387-076-560-803 for similar specifications. Verify compatibility with EDAC 887 series high-temperature alternatives if different housing materials are preferred. Ensure pin count and pitch match exactly when considering substitutes.
