391-014-520-201

Edgeboard Connectors Overview

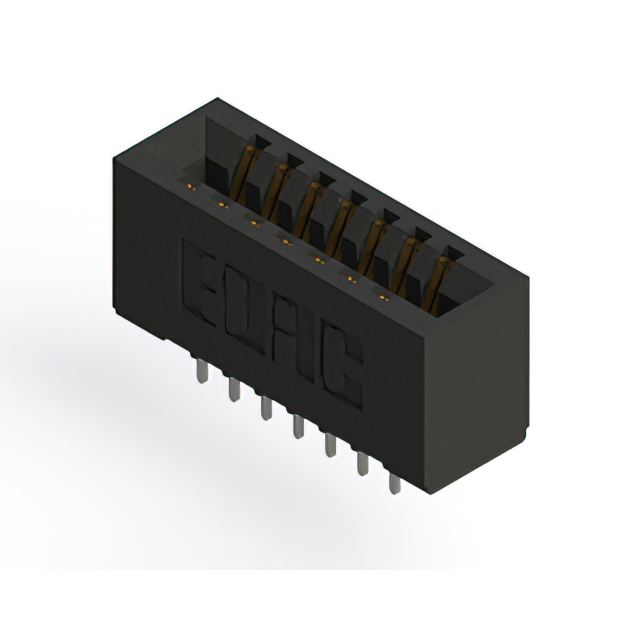

The EDAC Inc. 391-014-520-201 is a standard card edge connector from the 391 series, designed for vertical through-hole mounting. It features a dual female configuration with 14 positions and a 0.100" (2.54mm) contact pitch. The connector supports PCB thicknesses of 0.140" (3.56mm) and utilizes gold-plated contacts on a copper alloy base. Constructed with a black thermoplastic polyester housing, it operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board insertion
• Vertical orientation facilitates standard panel or board integration
• Gold-plated terminals ensure reliable signal transmission
• Thermoplastic polyester housing provides structural stability

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment modules
• Consumer electronic circuit boards
• Medical device internal connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm plating thickness and housing material variations. Ensure compatibility with target PCB hole dimensions and verify that the selected variant meets required environmental operating standards before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a vertical, dual-edge interface with a 2.54mm pitch is required. Confirm that the target printed circuit board thickness aligns with the 0.140" specification. Evaluate thermal requirements against the -40°C to +105°C operational range to ensure suitability for the intended application environment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 391 series of standard card edge connectors. The series offers various position counts and configurations, utilizing consistent 0.100" spacing. These connectors are engineered for general-purpose electronic applications requiring robust mechanical retention and electrical continuity in compact form factors.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference guides for verified substitute part numbers. Ensure any replacement maintains identical pin count, pitch, and mounting style specifications.
