Edgeboard Connectors Overview

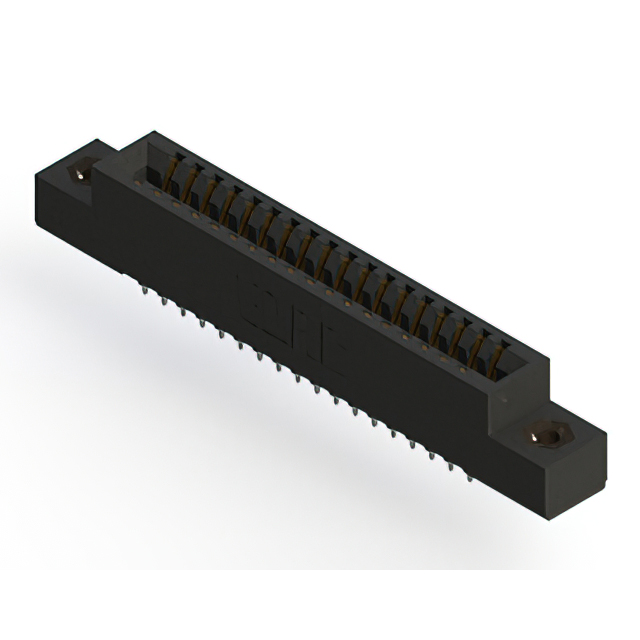

The EDAC Inc. 391-036-524-208 is a dual-edge female card edge connector from the 391 series, designed for high-reliability applications. It features 36 positions with a 0.100-inch (2.54mm) contact spacing and supports board thicknesses ranging from 0.054 to 0.070 inches. The connector utilizes gold-plated copper alloy contacts with a 10.0µin finish for enhanced conductivity and corrosion resistance. Constructed with a black thermoplastic polyester housing, it offers a robust mechanical structure suitable for harsh environments. Operating within a temperature range of -40°C to 105°C, this component ensures stable performance in demanding industrial settings.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated copper alloy contacts for reliable signal transmission
• Thermoplastic polyester housing for durability and heat resistance

Edgeboard Connectors Applications

• Industrial control systems requiring stable interconnects
• Telecommunications equipment needing high-density connections
• Medical devices demanding reliable signal integrity

Edgeboard Connectors Procurement Notes

Verify the specific part number 391-036-524-208 against official EDAC documentation to confirm current availability and lead times. Ensure compatibility with target PCB specifications, particularly regarding board thickness and mounting requirements. Cross-reference with authorized distributors to validate authenticity and avoid counterfeit components. Check for any recent updates to the datasheet that may affect installation or performance parameters.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge interface with 36 positions and 0.100-inch spacing is required. Consider its operating temperature range and material composition for environmental suitability. Evaluate the need for gold plating thickness and contact material based on signal integrity and longevity requirements. Compare against other series if different board thicknesses or mounting styles are necessary.

Edgeboard Connectors Part Context

This component belongs to the EDAC 391 series of card edge connectors, known for their versatility and reliability in various electronic applications. The series offers multiple configurations to accommodate different board sizes and connection needs. As a standard industry solution, it provides a balance of performance and cost-effectiveness for engineers designing complex electronic systems.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data. Consult EDAC technical support for direct replacements or cross-reference with similar series connectors ensuring identical pin count, spacing, and mounting characteristics.
