391-043-520-103

Edgeboard Connectors Overview

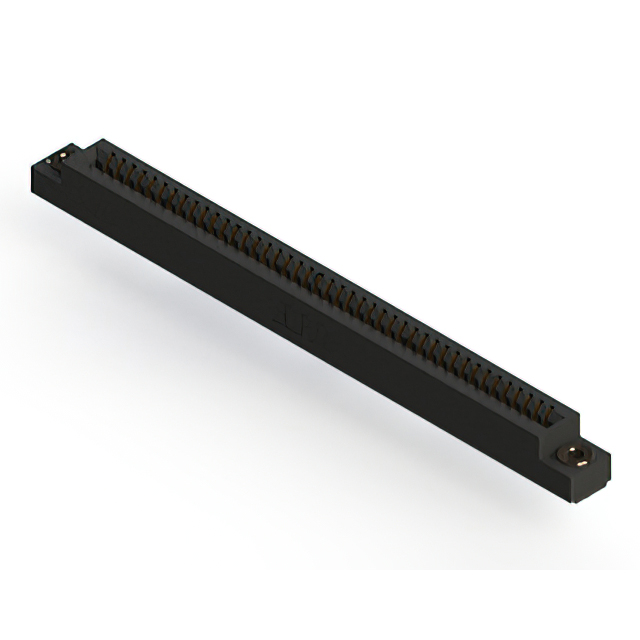

The EDAC Inc. 391-043-520-103 is a standard card edge connector from the 391 series, designed for single-edge board applications. It features 43 positions with a 2.54 mm (0.100 inch) pitch and supports a maximum operating temperature of +105°C. The connector utilizes gold-plated copper alloy contacts housed in a black thermoplastic polyester body, providing an insulation resistance of 5 GOhms. Rated for 3 A current, it employs solder pin termination for secure panel mounting.

Edgeboard Connectors Feature Summary

• Single-row female configuration optimized for vertical panel installation
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides thermal stability up to +105°C

Edgeboard Connectors Applications

• Vertical panel-mounted electronic assemblies
• Industrial control system interconnects
• Communication equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating thickness and material specifications. Ensure the selected variant matches the required board thickness tolerance of 1.37 mm to 1.78 mm for proper engagement. Confirm RoHS compliance status directly with the supplier documentation prior to procurement.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 43-position interface is required for vertical panel mounting. The 2.54 mm pitch accommodates standard PCB edge layouts. Verify that the application environment remains within the -40°C to +105°C operational range and does not exceed the 3 A current rating per contact.

Edgeboard Connectors Part Context

This part belongs to the EDAC 391 series of standard card edge connectors. The series offers various position counts and termination styles, all sharing consistent mechanical dimensions and electrical ratings. The 391 series is widely utilized in industrial and commercial electronics requiring robust, high-density connectivity solutions.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 391 series variants with matching 43 positions and 2.54 mm pitch, such as 391-043-520-102 or 391-043-520-108, provided the specific ordering suffixes align with the required plating and packaging specifications.
