392-010-520-101

Edgeboard Connectors Overview

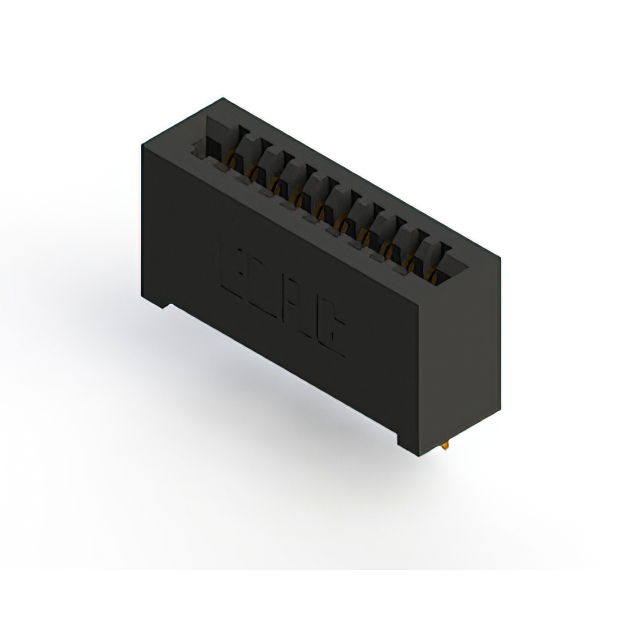

The EDAC Inc. 392-010-520-101 is a standard card edge connector from the 392 Series, designed for single-edge board applications. It features 10 positions with a 0.100 inch (2.54mm) contact spacing and utilizes female contacts. The unit employs gold-plated copper alloy terminals housed in a black thermoplastic polyester insulator. Designed for through-hole mounting, this component supports vertical installation angles and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Single-row configuration with female contacts for reliable signal transmission
• Gold-plated copper alloy terminals ensure durable electrical connectivity
• Thermoplastic polyester housing provides structural stability and insulation

Edgeboard Connectors Applications

• Standard card edge interconnections
• Vertical panel mount assemblies
• Through-hole circuit board integration

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required ten-position configuration and single-edge design before procurement. Confirm that the supplier provides official documentation confirming the gold plating thickness and material composition. Ensure compatibility with the target PCB hole dimensions and verify that the operating temperature range meets the environmental requirements of the intended application.

Edgeboard Connectors Selection Notes

Select this model when a low-profile, single-row connection is required for boards with a 0.100-inch pitch. Consider the vertical mounting style and through-hole termination method for assembly constraints. Evaluate the thermal performance limits against the operational environment to ensure the thermoplastic polyester housing remains stable under expected heat conditions.

Edgeboard Connectors Part Context

This component belongs to the EDAC 392 Series, which specializes in standard card edge connectors. The series offers various position counts and termination styles, providing modular solutions for diverse electronic packaging needs. This specific variant focuses on compact ten-position layouts suitable for space-constrained vertical installations.

Edgeboard Connectors Replacement Considerations

Cross-reference other parts within the EDAC 392 Series for alternative position counts or termination types. Verify mechanical footprint compatibility and electrical ratings when evaluating potential substitutes from different manufacturers.
