Edgeboard Connectors Overview

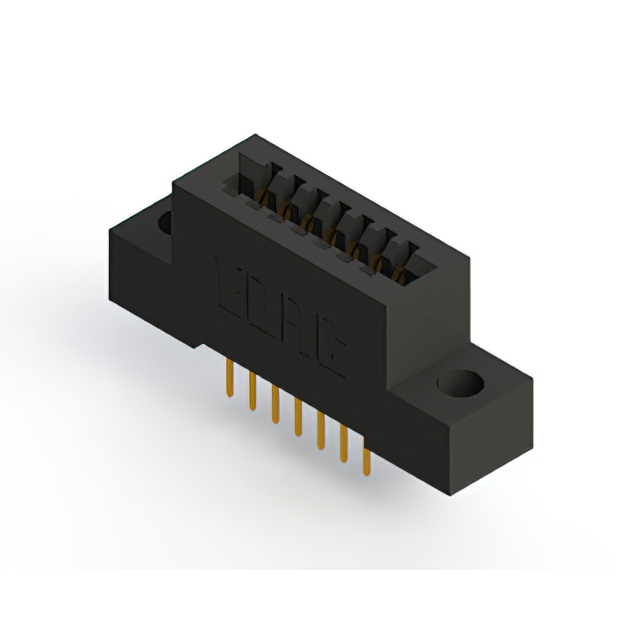

The EDAC Inc. 392-014-524-204 is a standard card edge connector from the 392 series, designed for reliable signal transmission in electronic assemblies. It features a dual-edge configuration with 14 positions and a contact spacing of 0.100 inches (2.54mm). The connector utilizes gold-plated copper alloy contacts to ensure low resistance and durability. It supports a board thickness of 1.57mm and employs a solder termination method for secure PCB attachment. The housing is constructed from black thermoplastic polyester, providing robust insulation and mechanical stability.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design accommodates double-sided circuit boards for increased I/O density.
• Gold-plated copper alloy contacts provide corrosion resistance and stable electrical performance.
• Thermoplastic polyester insulator ensures high dielectric strength and thermal resilience.

Edgeboard Connectors Applications

• Industrial control systems requiring durable edge-mounted interfaces
• Telecommunications equipment utilizing standard card edge form factors
• Test and measurement instrumentation needing reliable signal connections

Edgeboard Connectors Procurement Notes

Verify that the target printed circuit board matches the specified 1.57mm thickness requirement to ensure proper mating force and contact retention. Confirm that the assembly process utilizes compatible soldering techniques suitable for through-hole solder terminations. Ensure storage conditions maintain the integrity of the gold plating before installation.

Edgeboard Connectors Selection Notes

Select this component when a dual-row interface is necessary within a constrained vertical profile. The 0.100-inch pitch offers compatibility with standard PCB layouts. Consider the through-hole solder termination if wave or selective soldering processes are employed rather than surface-mount constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 392 series, which focuses on standard card edge connectors for general-purpose applications. The series provides various position counts and termination styles to support diverse electronic packaging needs while maintaining consistent dimensional standards across the product line.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 392 series variants such as 392-014-524-102 for single-edge configurations. Verify functional equivalents from other manufacturers only if they strictly match the 14-position count, 2.54mm pitch, and dual-edge geometry without altering mounting dimensions.

Edgeboard Connectors FAQ

What is the maximum operating temperature for this connector?

The connector is rated for an operating temperature range extending up to +105°C based on the material specifications of the thermoplastic polyester housing.

Does this connector support single-sided or double-sided PCBs?

It is a dual-edge connector, meaning it is designed to mate with double-sided circuit boards where contacts are present on both edges of the card.
