392-014-556-204

Edgeboard Connectors Overview

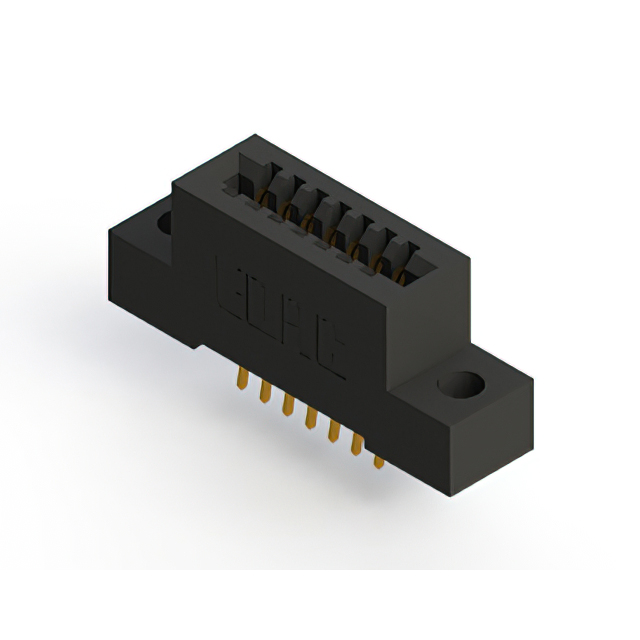

The EDAC Inc. 392-014-556-204 is a standard card edge connector from the 392 series, designed for reliable signal transmission in electronic assemblies. It features a dual-edge female configuration with 14 positions and a 0.100" (2.54mm) contact spacing. The connector utilizes gold-plated copper alloy contacts housed in a black thermoplastic polyester body. It supports a maximum operating temperature of +105°C and a minimum of -40°C, ensuring stability across diverse environmental conditions.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy terminals for enhanced conductivity and corrosion resistance
• Thermoplastic polyester housing provides structural integrity and thermal stability

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Consumer electronics module connections

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required dual-edge female configuration and 14-position count. Confirm that the supplier provides original manufacturer documentation to ensure authenticity. Check compatibility with the target PCB thickness and mounting requirements before finalizing the purchase order.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge connection is required for a 14-position interface with 2.54mm pitch. Ensure the application environment remains within the specified -40°C to +105°C operational range. Verify that the thermoplastic polyester housing meets the mechanical and chemical resistance needs of the assembly.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 392 series, which specializes in standard card edge solutions. The series offers various position counts and termination styles to accommodate different design constraints. The 392-014-556-204 specifically addresses applications requiring a compact dual-edge interface with robust contact materials.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for direct cross-references. Verify pinout compatibility and physical dimensions before substituting with other manufacturers' products.
