392-016-542-212

Edgeboard Connectors Overview

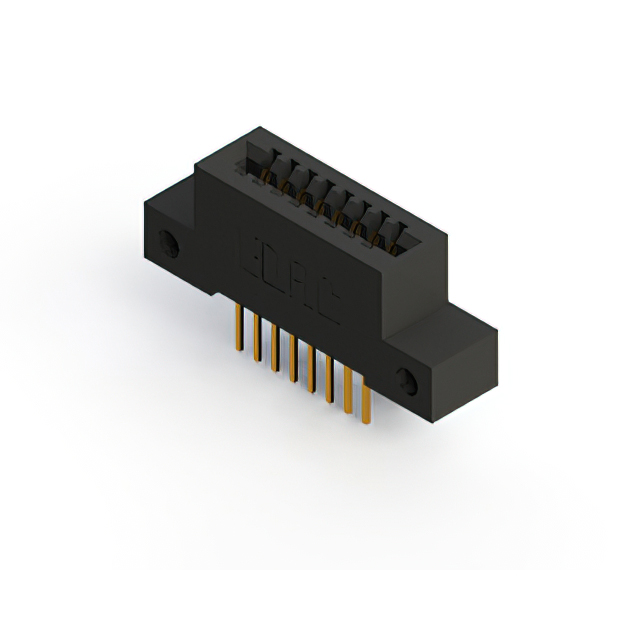

The EDAC Inc. 392-016-542-212 is a card edge connector from the 392 series, designed for dual-edge board insertion. It features 16 positions with a 0.100 inch (2.54mm) pitch. The connector utilizes female contacts made of copper alloy with gold plating. It supports PCB thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C. The housing is black thermoplastic polyester, featuring side mounting holes with a 0.128 inch diameter.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board retention
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Side mounting flanges facilitate stable panel or chassis installation

Edgeboard Connectors Applications

• Industrial control system interface connections
• Telecommunications equipment backplane integration
• Medical device internal module interconnects

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required dual-edge configuration and pin count. Confirm that the PCB thickness falls within the specified 0.054 to 0.070 inch range. Ensure the mounting hole diameter aligns with the design requirements. Check for RoHS compliance status if environmental regulations apply to the final assembly.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge connection is required for robust mechanical stability. The 0.100 inch pitch accommodates standard board layouts. Consider the operating temperature range for harsh environments. Verify that the side-mounting feature fits the available space constraints in the enclosure design compared to top-mounted alternatives.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 392 series, which focuses on high-reliability interconnect solutions. The series offers various position counts and edge configurations. It is engineered for demanding applications requiring durable electrical connections. The design emphasizes mechanical strength alongside electrical performance standards.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 392 series parts with matching 16-position dual-edge specifications. Verify identical pitch, contact type, and mounting style before substitution. Cross-reference dimensions to ensure physical compatibility.
