392-016-555-201

Edgeboard Connectors Overview

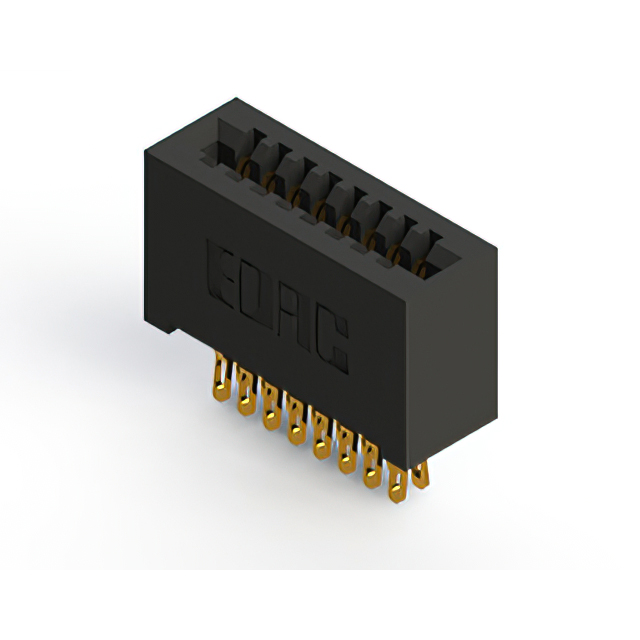

The EDAC Inc. 392-016-555-201 is a standard card edge connector from the 392 series, designed for reliable signal transmission in electronic assemblies. It features 16 positions arranged in a single row with a 0.100 inch (2.54 mm) pitch. The connector utilizes female contacts made of copper alloy, plated with gold to ensure low contact resistance and durability. It is engineered for through-hole mounting at a vertical angle, accommodating board thicknesses typically between 0.054 and 0.070 inches. The housing is constructed from black thermoplastic polyester, providing robust insulation and mechanical stability across an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Single-row female configuration optimized for standard card edge interfaces
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Vertical through-hole mounting style ensuring secure PCB integration
• Thermoplastic polyester housing offering high thermal stability and insulation

Edgeboard Connectors Applications

• Industrial control systems requiring stable I/O connections
• Consumer electronics utilizing modular circuit boards
• Telecommunications equipment needing reliable signal routing
• Automotive electronic modules demanding durable interconnects

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required single-row configuration and vertical orientation before procurement. Confirm that the target printed circuit board thickness falls within the specified acceptance range to ensure proper contact engagement. Check for any RoHS compliance documentation if environmental regulations apply to the final assembly. Ensure storage conditions maintain the integrity of the gold plating prior to installation.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 16-position interface is required for vertical board-to-board or board-to-backplane connections. The 0.100-inch pitch is suitable for general-purpose signal lines rather than high-density data buses. Consider the vertical mounting profile for space-constrained enclosures where horizontal connectors are not feasible. Evaluate the current rating and insulation resistance against the specific circuit requirements to guarantee long-term reliability under operational loads.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 392 series, a widely recognized line of standard card edge connectors known for their versatility and compatibility with various industry standards. The series offers multiple position counts and configurations, allowing designers to scale connectivity needs without changing the fundamental form factor. The 392 series is commonly used in applications requiring robust mechanical retention and consistent electrical performance over extended periods.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 392 series variants with matching pin counts and pitch, such as 392-016-555-207, provided the specific ordering suffix aligns with the desired termination and flange options. Cross-manufacturer replacements must strictly match the 0.100-inch pitch, 16-position count, and vertical through-hole mounting style to ensure physical and electrical compatibility.
