392-017-520-103

Edgeboard Connectors Overview

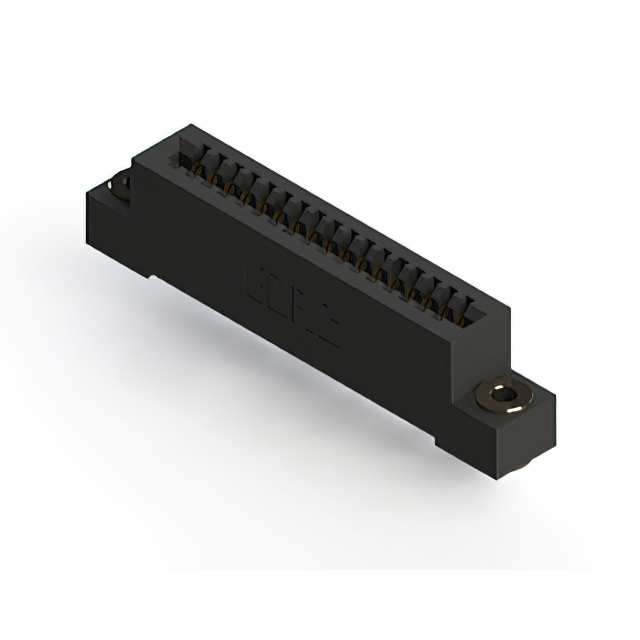

The EDAC Inc. 392-017-520-103 is a standard card edge connector from the 392 Series, designed for single-form factor applications. It features 17 positions with a 0.100-inch (2.54mm) contact spacing. The connector utilizes tail-type contacts that are gold-plated copper alloy, suitable for solder pin termination. The insulator is constructed from black thermoplastic polyester, providing robust electrical insulation. This component supports panel mounting in a vertical orientation and is rated for an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Single row configuration with 17 positions for reliable signal transmission
• Gold-plated copper alloy contacts ensure durable connection performance
• Flush mount design with floating bobbin flange for secure panel installation
• Vertical orientation facilitates efficient board-to-panel integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment needing reliable signal pathways
• Automotive technology interfaces demanding durability
• Communication infrastructure hardware connections

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm current availability and manufacturing status. Ensure compatibility with target PCB thickness and mating card edge specifications. Cross-reference ordering suffixes to confirm exact physical dimensions and plating requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector based on the requirement for a 17-position single-row interface with 2.54mm pitch. Confirm that the vertical panel mount style aligns with the mechanical enclosure design. Verify that the thermal rating meets the operational environment constraints and that the gold plating satisfies conductivity needs.

Edgeboard Connectors Part Context

This component belongs to the EDAC 392 Series, which specializes in standard card edge connectors. The series offers various position counts and mounting styles tailored for diverse electronic assembly needs. The 392-017-520-103 specifically addresses applications requiring a moderate density single-row connection with high reliability standards.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers within the same series. Ensure any replacement maintains identical pin count, pitch, and mounting characteristics to preserve mechanical and electrical integrity.
