Edgeboard Connectors Overview

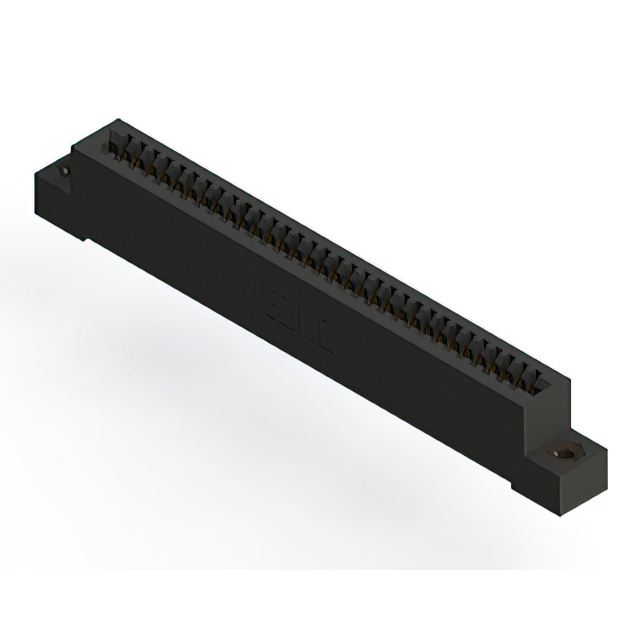

The EDAC Inc. 392-032-524-108 is a standard card edge connector from the 392 series, designed for single-edge board applications. It features 32 positions with a 0.100 inch (2.54 mm) contact spacing and utilizes gold-plated copper alloy contacts. The component employs a female terminal type with a black thermoplastic polyester insulator. It supports wire wrap termination and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Single-row configuration with 32 positions for reliable signal transmission
• Gold-plated copper alloy contacts ensure durable connection performance
• Thermoplastic polyester housing provides structural stability and thermal resistance

Edgeboard Connectors Applications

• Standard card edge interconnection systems
• Electronic modules requiring single-edge board mounting
• Industrial control equipment interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact termination style and mounting lug specifications. Ensure compatibility with target PCB thickness and guide rail requirements before procurement. Cross-reference the manufacturer part number with authorized distributor catalogs to validate current product status and availability constraints.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 32-position interface with 2.54 mm pitch is required. Confirm that the wire wrap termination method aligns with the assembly process. Verify that the operating temperature range meets environmental demands and that the housing material suits the application's chemical exposure conditions.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 392 series, which offers various contact spacings and row configurations. The series provides multiple termination options including solder pin and wire wrap styles. It is engineered for vertical panel or through-hole installation in standard electronic assemblies requiring robust card edge connectivity.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Consult official EDAC documentation for direct replacements or cross-reference similar series components with matching electrical and mechanical parameters.
