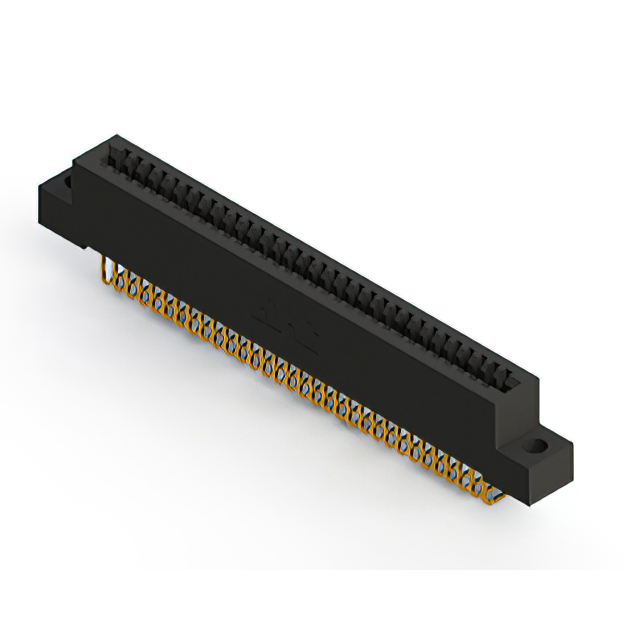

392-032-558-104 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 32POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 392-032-558-104
- Description：CONN EDGE SINGLE FML 32POS 0.100
- Series：392
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：32
- Number of Positions：32
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.100" (2.54mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole, Right Angle
- Termination：Solder, Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 392-032-558-104
Edgeboard Connectors Overview
The EDAC Inc. 392-032-558-104 is a standard single-row card edge connector featuring 32 positions with a 0.100-inch (2.54mm) contact spacing. Designed for panel mount applications, it utilizes female contacts with gold plating on copper alloy substrates. The unit employs a solder pin termination method and incorporates a black thermoplastic polyester insulator. It supports board thicknesses of 1.57mm and operates within a temperature range of -40°C to +105°C, ensuring reliable signal transmission in vertical configurations.
Edgeboard Connectors Feature Summary
- Single row configuration with 32 female contacts
- Gold-plated copper alloy terminals for conductivity
- Vertical panel mount installation style
- Black thermoplastic polyester insulating material
Edgeboard Connectors Applications
- Industrial control systems
- Telecommunications equipment
- Test and measurement instrumentation
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against official EDAC documentation to confirm terminal type and mounting variations. Ensure compatibility with target PCB edge thickness specifications before integration. Cross-reference manufacturer part numbers to avoid substitution errors during procurement processes.
Edgeboard Connectors Selection Notes
Select this component when a single-row interface with 32 positions is required. Confirm that the 0.100-inch pitch aligns with the design layout. Verify that the vertical panel mount orientation meets mechanical constraints and that the operating temperature range satisfies environmental requirements.
Edgeboard Connectors Part Context
This model belongs to the EDAC 392 Series, which provides standard card edge connectors. The series offers various position counts and termination options. This specific part number represents a fixed configuration within that product line, designed for general-purpose interconnect applications requiring robust electrical performance.
Edgeboard Connectors Replacement Considerations
Consult official EDAC cross-reference guides for verified substitute part numbers. Generic equivalents may not match critical dimensions or material specifications. Validate any alternative components against original datasheet parameters to ensure functional compatibility.
