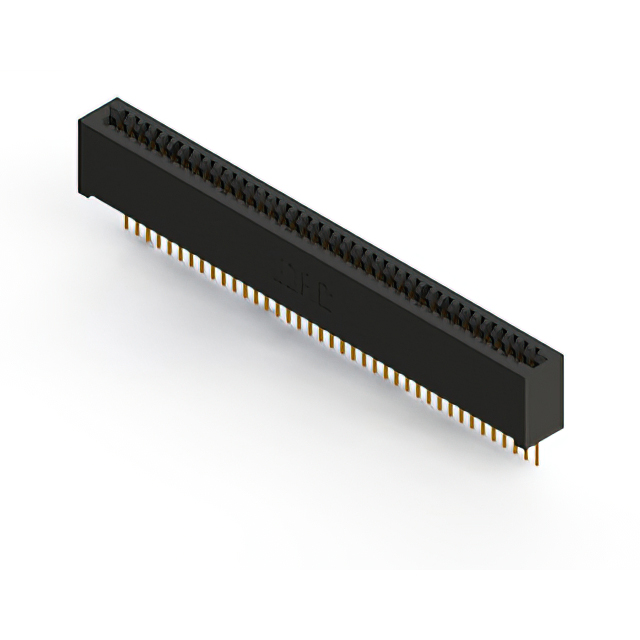

392-039-541-101

$14.72

Description：CONN EDGE SINGLE FML 39POS 0.100
Series：392
Mfr：EDAC Inc.
Package：Box

SKU:c699055f2d6e Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

392-039-541-101 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 39POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 392-039-541-101

Description：CONN EDGE SINGLE FML 39POS 0.100
Series：392
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：39
Number of Positions：39
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 392-039-541-101

392-039-541-101

Edgeboard Connectors Overview

The EDAC Inc. 392-039-541-101 is a standard single-row card edge connector featuring 39 positions with a 2.54 mm (0.100 inch) contact spacing. Designed for panel mounting in a vertical orientation, it utilizes wire wrap termination and gold-plated copper alloy contacts. The black thermoplastic polyester insulator accommodates board thicknesses of 1.57 mm. The connector includes .025" square tails measuring .760" in length, providing secure mechanical retention without additional mounting lugs.

Edgeboard Connectors Feature Summary

Single row configuration with 39 female contacts
Wire wrap termination method for reliable signal integrity
Gold-plated copper alloy contacts for corrosion resistance
Vertical panel mount design with integrated tail retention

Edgeboard Connectors Applications

Industrial control system backplanes
Telecommunications equipment interconnects
Test and measurement instrument modules
Automotive electronic control unit interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix '101' against official EDAC documentation to confirm wire wrap termination and tail dimensions. Ensure compatibility with the target PCB thickness of 1.57 mm. Confirm that the vertical panel mount style aligns with the enclosure design requirements. Cross-reference the gold plating specification to guarantee performance in the intended operating environment.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with 39 positions is required. The 2.54 mm pitch ensures compatibility with standard board layouts. Choose the wire wrap variant over solder pin types if through-hole soldering is not feasible or desired. Verify that the vertical orientation fits within the available chassis height constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 392 Series, which provides standardized card edge solutions. The series offers various position counts and termination styles. The 392-039-541-101 specifically addresses applications needing robust wire wrap connections in a compact single-row format.
