392-106-521-202

Edgeboard Connectors Overview

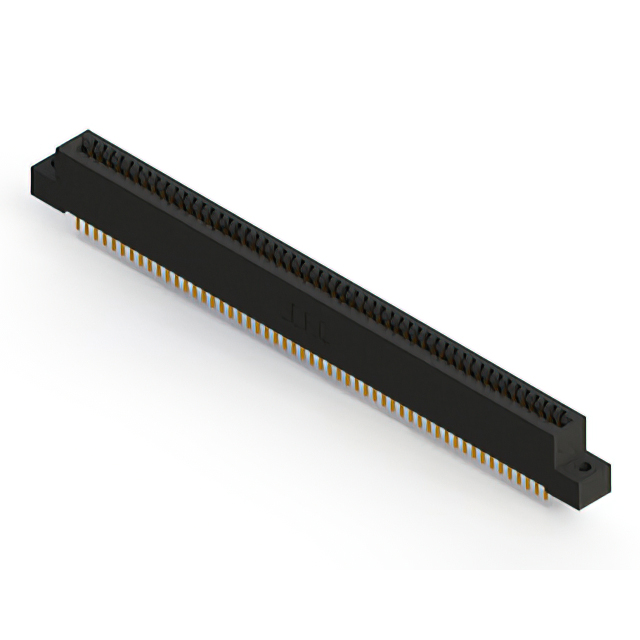

The EDAC Inc. 392-106-521-202 is a standard card edge connector from the 392 Series, designed for dual-edge mating configurations. It features 106 positions with a 0.100 inch (2.54 mm) contact spacing. The connector utilizes gold-plated contacts and a black thermoplastic polyester insulator. It supports a PCB thickness of 1.57 mm and operates within a temperature range of -40°C to +105°C. Rated for 3 A current, it offers 5 GOhms insulation resistance.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design for secure board-to-board or backplane interconnections
• Gold-plated copper alloy contacts ensure reliable signal transmission and corrosion resistance
• Thermoplastic polyester housing provides structural stability and thermal endurance

Edgeboard Connectors Applications

• Industrial control systems requiring robust signal routing
• Telecommunications infrastructure equipment
• Automotive electronic modules
• Medical device internal circuitry

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm pin count, pitch, and termination style match the design requirements. Ensure compatibility with the target PCB thickness and mounting orientation before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-density dual-edge interface is required with standard 2.54 mm spacing. Consider the 3 A current rating and thermal limits for power distribution needs. Verify that the dual-edge form factor aligns with the mechanical constraints of the host assembly.

Edgeboard Connectors Part Context

This part belongs to the EDAC 392 Series, which specializes in standard card edge connectors. The series offers various position counts and termination options, catering to diverse electronic integration needs across multiple industries with standardized dimensions.

Edgeboard Connectors Replacement Considerations

Cross-reference compatible parts within the EDAC 392 family for alternative position counts. Verify mechanical footprint and electrical specifications against other manufacturers' dual-edge connectors if sourcing alternatives.
