395-006-524-101

Edgeboard Connectors Overview

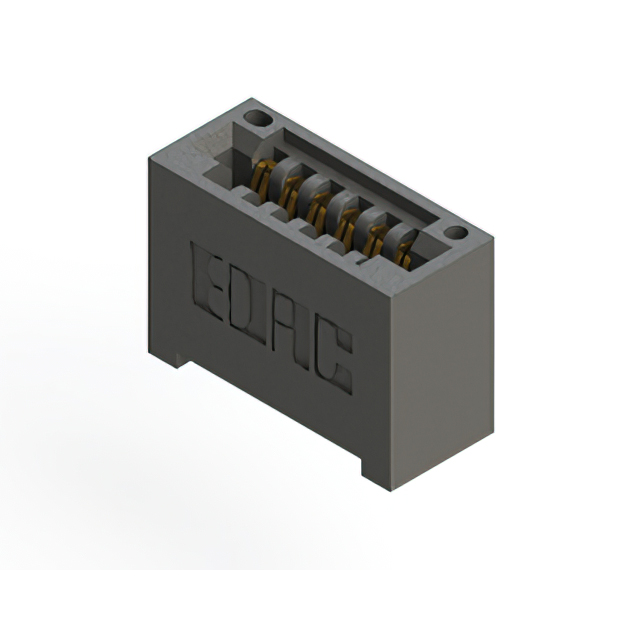

The EDAC Inc. 395-006-524-101 is a single-row card edge connector designed for vertical through-hole mounting. It features 6 positions with a 0.100-inch (2.54mm) pitch and accepts board thicknesses between 0.054 and 0.070 inches. The connector utilizes female cantilever contacts made of copper alloy, finished with 10.0µin gold plating. It employs a solder termination method and is housed in black thermoplastic polyester insulation. The component operates within a temperature range of -40°C to 105°C and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Single-edge female contact configuration for non-specified card applications
• Cantilever contact design ensures reliable electrical engagement
• Gold-plated terminals provide corrosion resistance and conductivity
• Vertical orientation facilitates standard printed circuit board integration

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment modules
• Consumer electronic device expansion slots
• Automotive electronics interface boards

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffixes to ensure correct termination style and packaging. Confirm that the target application requires a single-row configuration with a 0.100-inch pitch. Check for compliance requirements such as RoHS3 status if applicable to the final product. Ensure mechanical compatibility with the specified board thickness range before ordering.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, single-row connection is required for thin circuit boards. The 6-position count suits compact signal or power distribution tasks. Consider the vertical mounting profile for space-constrained enclosures. Evaluate the thermal operating range against environmental conditions. Verify that the cantilever contact type matches the mating card insertion force requirements.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 395 series, which offers various position counts and termination options. Similar models include the 395-006-524-108 and 395-006-524-408, differing primarily in packaging or specific suffix attributes. The series provides standardized dimensions for interoperability across multiple industrial and commercial hardware platforms.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series may include 395-006-524-108 or 395-006-524-408, provided they match the exact termination and flange specifications. Cross-brand replacements require verifying identical pitch, contact type, and board thickness tolerance.
