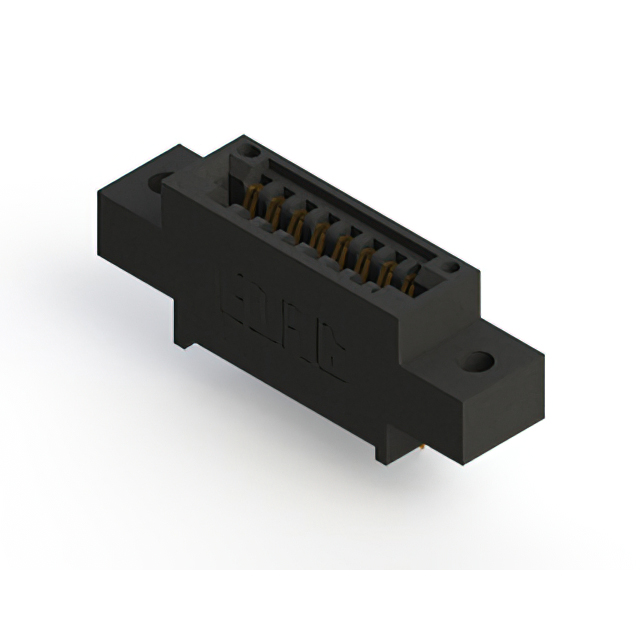

395-008-525-602

$6.30

Description：CONN EDGE SINGLE FML 8POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Bulk

SKU:e5cbcf701079 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

395-008-525-602 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 8POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 395-008-525-602

Description：CONN EDGE SINGLE FML 8POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：8
Number of Positions：8
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 395-008-525-602

395-008-525-602

Edgeboard Connectors Overview

The EDAC Inc. 395-008-525-602 is a single-row card edge connector with 8 positions and a 0.100-inch (2.54 mm) pitch. It features female contacts made of copper alloy with a gold finish, housed in black thermoplastic polyester insulation. Designed for panel mount installation, it accepts printed circuit boards with a thickness range of 0.054 to 0.070 inches (1.37 to 1.78 mm). The component operates within a temperature range of -40°C to 105°C and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

Single-edge female contact configuration for reliable signal transmission
Gold-plated copper alloy contacts ensure corrosion resistance and durability
Thermoplastic polyester housing provides thermal stability and mechanical strength

Edgeboard Connectors Applications

Industrial control system interconnections
Embedded module board connections
General-purpose electronic device interfaces

Edgeboard Connectors Procurement Notes

Verify the specific contact count and row configuration against project requirements before ordering. Confirm that the target PCB thickness falls within the specified acceptance range to ensure proper mechanical engagement. Check for RoHS3 compliance documentation if environmental regulations apply to the final assembly. Ensure the panel mount style aligns with the enclosure design constraints.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, single-row connection is required for thin circuit boards. The 0.100-inch pitch offers standard compatibility with common board layouts. Consider the operating temperature range and material composition if the environment involves high heat or chemical exposure. Verify that the female contact type matches the mating edge card specifications.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series is designed for vertical panel mounting applications requiring robust electrical connections. Components in this family typically utilize gold-plated contacts and thermoplastic insulators to maintain performance across various industrial conditions.
