395-009-542-112

Edgeboard Connectors Overview

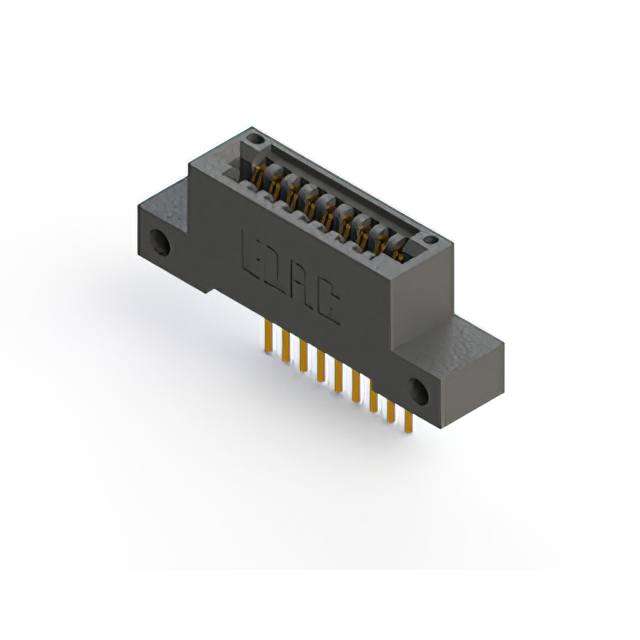

The EDAC Inc. 395-009-542-112 is a single-row female card edge connector designed for vertical panel mounting. It features nine positions with a 0.100-inch (2.54mm) contact pitch and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The connector utilizes gold-plated contacts on a copper alloy base, housed within a black thermoplastic polyester insulator body. This component supports through-hole termination methods and operates reliably within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Vertical panel mount design with high-profile insulator body
• Gold-plated contacts ensure reliable signal transmission
• Accepts standard 0.062 inch nominal thickness PCBs

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Automotive electronic modules
• Test and measurement instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination style and plating specifications. Ensure that the selected variant matches the required PCB thickness tolerance of 0.062 inches. Cross-reference the RoHS compliance status with current regulatory requirements before finalizing procurement orders to maintain supply chain integrity.

Edgeboard Connectors Selection Notes

Select this model when a single-row, vertical interface is required for 9-position connections. The 0.100-inch pitch accommodates standard board layouts. Consider the high-profile housing for enhanced mechanical stability in panel-mounted applications. Verify that the operating temperature range meets the environmental demands of the target deployment scenario.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various configurations including different row counts and termination styles. The 395-009-542-112 specifically addresses needs for compact, single-sided edge connections with durable metallic contacts and stable polymer insulation for consistent electrical performance.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified equivalents. Generic cross-references may not match the precise dimensional tolerances or contact material specifications required for reliable operation in critical applications.
