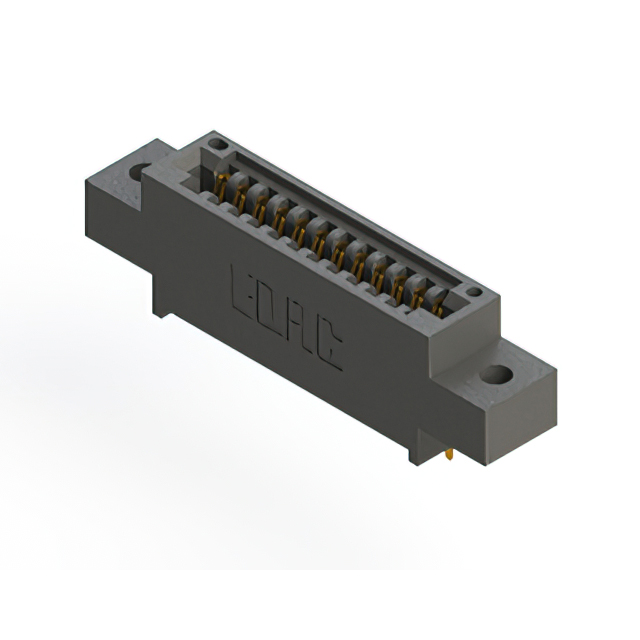

395-012-520-602 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 12POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 395-012-520-602
- Description：CONN EDGE SINGLE FML 12POS 0.100
- Series：395
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：12
- Number of Positions：12
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.100" (2.54mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 395-012-520-602
Edgeboard Connectors Overview
The EDAC Inc. 395-012-520-602 is a single-row card edge connector designed for vertical board-to-board interconnections. It features 12 female contacts with a 0.100-inch (2.54mm) pitch. The connector utilizes gold-plated terminals and a black thermoplastic insulator. It supports PCB thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C.
Edgeboard Connectors Feature Summary
- Single-row female contact configuration for standard card edge applications
- Gold-plated terminal surfaces ensure reliable signal transmission
- Vertical mounting orientation facilitates direct board insertion
Edgeboard Connectors Applications
- Industrial control system interface connections
- Telecommunications equipment backplane modules
- Consumer electronics internal board interconnects
Edgeboard Connectors Procurement Notes
Verify the complete part number against manufacturer catalogs to confirm specific termination styles and flange options. Ensure compatibility with target PCB stack-up dimensions and verify RoHS compliance status for current production batches before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a low-profile, single-row connection is required for thin circuit boards. The 2.54mm pitch offers standard spacing for general-purpose signals. Confirm that the target card thickness falls within the specified mechanical tolerance range for proper retention.
Edgeboard Connectors Part Context
This component belongs to the EDAC 395 series of standard card edge connectors. The series provides various position counts and termination methods. This specific model represents a compact 12-position variant suitable for space-constrained designs requiring robust mechanical locking.
Edgeboard Connectors Replacement Considerations
Cross-reference with other EDAC 395 series parts for different pin counts or termination types. Verify mechanical footprint compatibility if substituting with generic equivalents from other manufacturers.
