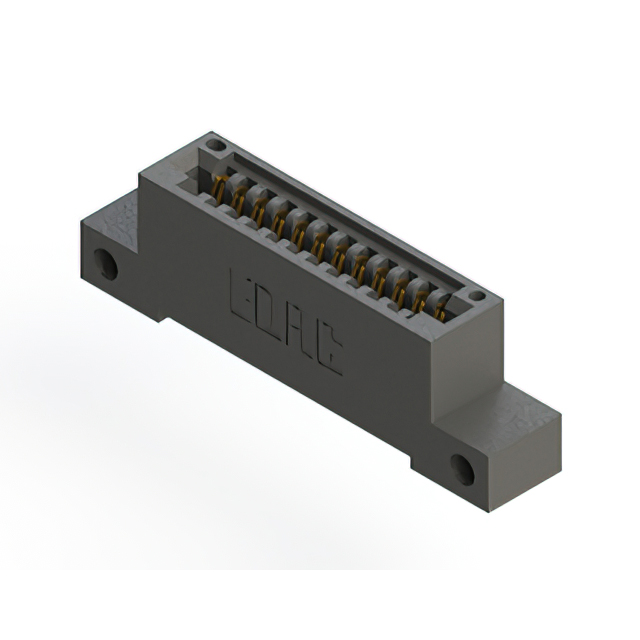

395-012-521-112 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 12POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 395-012-521-112
- Description：CONN EDGE SINGLE FML 12POS 0.100
- Series：395
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：12
- Number of Positions：12
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.100" (2.54mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 395-012-521-112
Edgeboard Connectors Overview
The EDAC Inc. 395-012-521-112 is a single-row female card edge connector featuring 12 positions with a 0.100-inch (2.54mm) pitch. Designed for non-specified single-edge applications, it utilizes gold-plated contacts and black thermoplastic polyester insulation. The component supports vertical panel mounting with solder pin termination, ensuring reliable electrical connections in standard electronic assemblies.
Edgeboard Connectors Feature Summary
- Single-row female configuration for non-specified single-edge board insertion
- Gold-plated contact surfaces ensure reliable signal transmission
- Vertical panel mount design with solder pin termination
- Black thermoplastic polyester insulator housing
Edgeboard Connectors Applications
- General-purpose electronic circuit interconnections
- Industrial control system module interfaces
- Communication equipment backplane connections
Edgeboard Connectors Procurement Notes
Verify the complete part number including all suffixes to ensure correct contact plating, orientation, and termination style. Confirm that the target PCB thickness matches the connector's specified range. Check RoHS compliance status against current regulatory requirements before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a single-row, 12-position interface is required. Ensure the mating card edge thickness aligns with the connector's specification. Verify that the vertical mounting angle and solder pin termination method are compatible with the assembly process and PCB layout constraints.
Edgeboard Connectors Part Context
This model belongs to the EDAC 395 Series of standard card edge connectors. The series offers various position counts and configurations for diverse electronic interconnection needs. It serves as a fundamental component for establishing secure electrical pathways between circuit boards and backplanes in modular systems.
Edgeboard Connectors Replacement Considerations
Consult official EDAC documentation for verified substitute part numbers within the same series. Cross-reference key parameters such as position count, pitch, and termination type to ensure functional compatibility during replacement scenarios.
