395-014-541-202

Edgeboard Connectors Overview

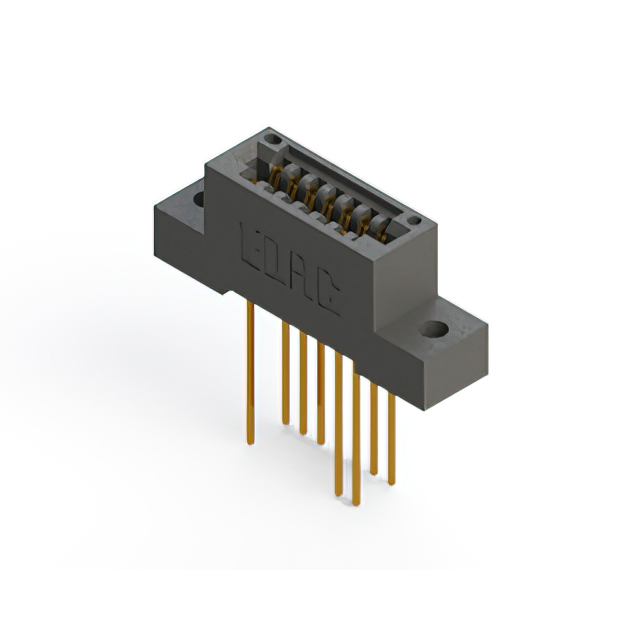

The EDAC Inc. 395-014-541-202 is a standard card edge connector from the 395 series, designed for vertical board-to-board or board-to-backplane connections. It features 14 positions arranged in two rows of seven contacts each. The connector utilizes a 2.54 mm (0.100 inch) pitch and is compatible with PCBs having a thickness of 1.57 mm. Contacts are gold-plated to ensure reliable signal transmission. The housing is black, and the unit includes flanges for secure mounting.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for robust connection stability
• Vertical mounting orientation with integrated flanges for mechanical support
• Gold-plated contacts to maintain consistent electrical performance

Edgeboard Connectors Applications

• Industrial control systems requiring reliable I/O connections
• Communication equipment backplanes
• Automotive electronic modules
• Medical device circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm pin count, pitch, and plating specifications. Ensure compatibility with target PCB thickness and mounting requirements. Cross-reference with authorized distributors to validate authenticity and avoid counterfeit components. Confirm RoHS compliance status through current datasheets before integration into production.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, vertical card edge connector with 14 positions is required. Consider the 2.54 mm pitch and 1.57 mm PCB thickness compatibility during design. Gold plating is suitable for applications demanding low contact resistance. Verify that the flange design meets enclosure mounting constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and configurations for diverse electronic interconnection needs. The 395-014-541-202 specifically addresses applications needing a compact, dual-row interface with high reliability.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include other 395-series variants with different position counts. For equivalent specifications, verify matching pitch, row count, and mounting style. Consult EDAC documentation for cross-referencing similar connectors.
