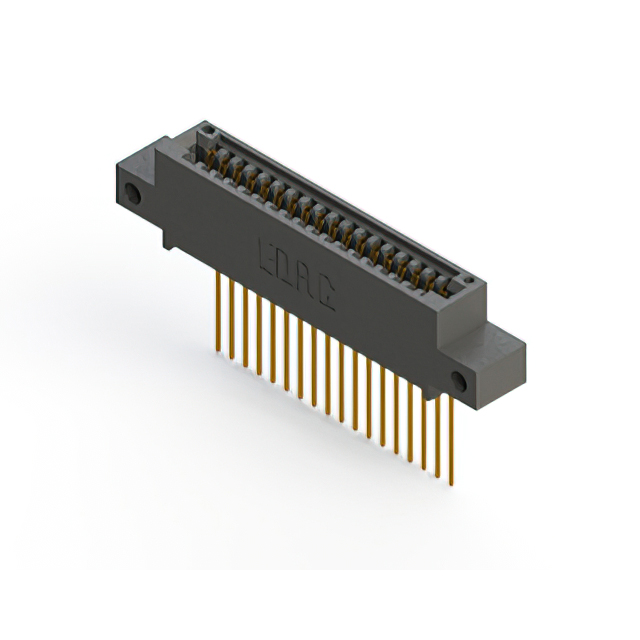

395-018-541-412 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 18POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 395-018-541-412
- Description：CONN EDGE SINGLE FML 18POS 0.100
- Series：395
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：18
- Number of Positions：18
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.100" (2.54mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 395-018-541-412
Edgeboard Connectors Overview
The EDAC Inc. 395-018-541-412 is a standard card edge connector from the 395 series, designed for vertical board-to-board connections. It features an 18-position configuration with a 0.100-inch (2.54mm) pitch. The connector utilizes gold-plated contacts and is constructed with a black insulator. It is specified for single-edge card applications and supports a PCB thickness of 1.57 mm.
Edgeboard Connectors Feature Summary
- Vertical mounting orientation for direct board integration
- Gold-plated contact surfaces for reliable signal transmission
- Single-edge design compatible with non-specified cards
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnects
- Communication equipment backplanes
- Test and measurement instrumentation boards
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against the manufacturer datasheet to ensure correct termination style and flange options. Confirm that the target PCB layout accommodates the required 1.57 mm thickness specification. Cross-reference the RoHS compliance status with current regional regulatory requirements before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a vertical, single-row connection is required for 18 signals. Ensure the mating card edge thickness falls within the operational range defined by the datasheet. Consider the gold plating requirement for environments demanding high corrosion resistance and low contact impedance.
Edgeboard Connectors Part Context
This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and termination styles. The 395-018 variant specifically addresses applications needing a compact 18-position interface with vertical mounting capabilities for space-constrained electronic assemblies.
Edgeboard Connectors Replacement Considerations
Consult the official EDAC cross-reference guide for verified substitutes. Direct replacements must maintain identical 0.100 inch pitch, 18 positions, and vertical orientation.
