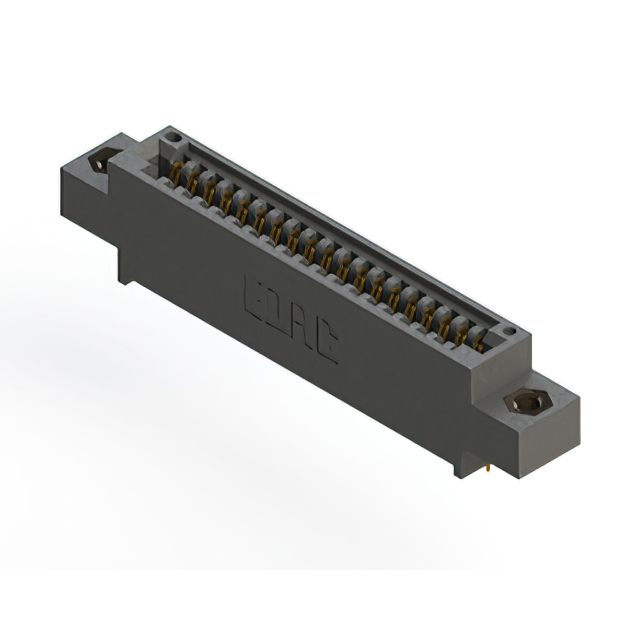

395-019-524-607

$9.32

Description：CONN EDGE SINGLE FML 19POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box

SKU:81cbfff5474c Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

395-019-524-607 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 19POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 395-019-524-607

Description：CONN EDGE SINGLE FML 19POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：19
Number of Positions：19
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Top Mount Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 395-019-524-607

395-019-524-607

Edgeboard Connectors Overview

The EDAC Inc. 395-019-524-607 is a single-row card edge connector with 19 positions and a 0.100-inch (2.54mm) pitch. It features female contacts with gold plating and a black polyester insulator. Designed for through-hole mounting, it accommodates board thicknesses between 0.054 and 0.070 inches. The unit includes M3 threaded inserts for top-mount flange stability and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

Single-edge configuration with 19 female contact positions
Gold-plated cantilever spring contacts for reliable signal transmission
Integrated M3 threaded flange inserts for secure panel mounting
Thermoplastic polyester insulation rated for high-temperature environments

Edgeboard Connectors Applications

Industrial control system backplanes
Telecommunications equipment interconnects
Automotive electronic module connections
Test and measurement instrument interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to ensure correct termination style and flange configuration. Confirm that the target PCB design aligns with the specified 0.100-inch pitch and single-row layout requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with robust mechanical fixation via threaded flanges is required. Ensure the mating card thickness falls within the 1.37mm to 1.78mm specification range. Consider the operating temperature limits if deployed in extreme environmental conditions.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and row configurations. This specific model provides a compact solution for applications requiring moderate I/O density with enhanced mechanical stability compared to unflanged variants.
