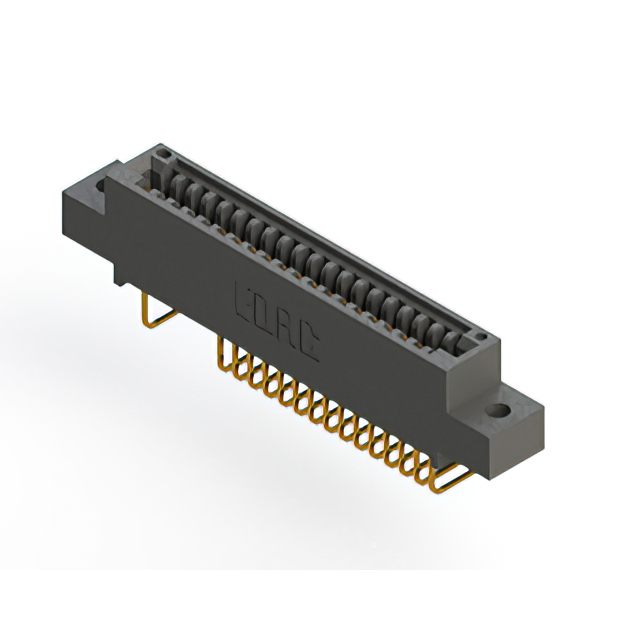

395-020-558-402 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 20POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 395-020-558-402
- Description：CONN EDGE SINGLE FML 20POS 0.100
- Series：395
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：20
- Number of Positions：20
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.100" (2.54mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 395-020-558-402
Edgeboard Connectors Overview
The EDAC Inc. 395-020-558-402 is a standard card edge connector designed for single-row female applications. It features 20 positions with a 0.100 inch (2.54mm) pitch and utilizes gold-plated contacts for reliable signal transmission. The component employs a wire wrap termination method and is constructed with a black thermoplastic polyester insulator. It supports PCB thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C.
Edgeboard Connectors Feature Summary
- Single-row female configuration for non-specified card edge applications
- Wire wrap termination ensures secure electrical connections
- Gold contact plating provides corrosion resistance and conductivity
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnects
- Telecommunications equipment signal routing
- Automotive electronics board-to-board connections
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, termination style, and flange specifications. Ensure compatibility with target PCB stack-up dimensions and verify RoHS compliance status prior to integration into final assembly processes.
Edgeboard Connectors Selection Notes
Select this component when a single-row female connector with wire wrap termination is required. Confirm that the target card thickness falls within the specified 0.054 to 0.070 inch range. Evaluate thermal requirements against the -40°C to 105°C operating limit before finalizing the design choice.
Edgeboard Connectors Part Context
This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and termination options. This specific model represents a single-row variant optimized for general-purpose electronic interconnection tasks in commercial and industrial environments.
Edgeboard Connectors Replacement Considerations
Cross-reference with EDAC part numbers sharing the same 0.100 inch pitch and wire wrap termination. Verify mechanical footprint and electrical ratings match exactly before substituting.
