395-021-524-102

Edgeboard Connectors Overview

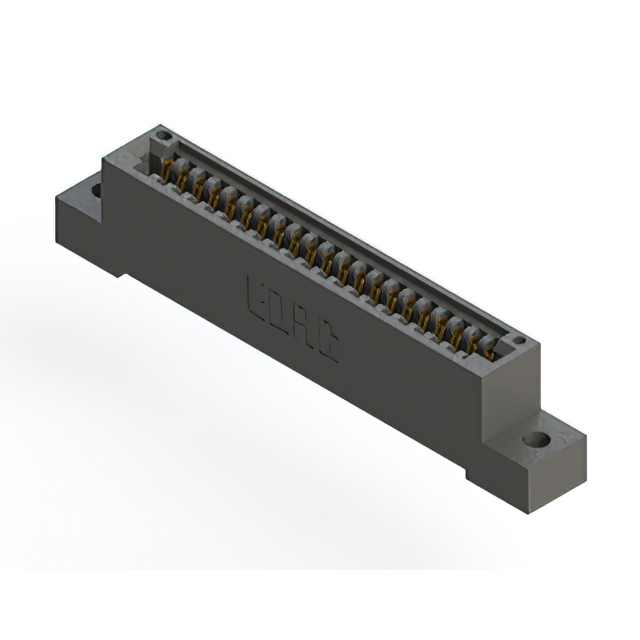

The EDAC Inc. 395-021-524-102 is a standard card edge connector featuring 21 positions with a 0.100 inch (2.54 mm) pitch. It utilizes a single row configuration and gold-plated contacts for reliable signal transmission. The component is designed for vertical panel mounting and employs a solder pin termination type. The insulator material is black thermoplastic polyester, supporting a maximum operating temperature of +105°C and a minimum of -40°C. This connector ensures secure interface connections for edgeboard applications.

Edgeboard Connectors Feature Summary

• Gold-plated contacts ensure durable electrical connectivity
• Vertical panel mount design facilitates structured installation
• Thermoplastic polyester housing provides thermal stability

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Computing hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific contact plating thickness and insulation resistance values against the official manufacturer datasheet prior to integration. Confirm that the board thickness matches the connector's specified tolerance to ensure proper mechanical engagement. Check for any recent product change notifications regarding material composition or dimensional updates from EDAC Inc. to maintain supply chain consistency.

Edgeboard Connectors Selection Notes

Select this model when a single-row, 21-position interface is required for vertical mounting scenarios. Ensure the mating card edge thickness aligns with the connector's acceptance range. Consider the gold contact finish for environments requiring corrosion resistance. Verify that the solder pin termination method is compatible with the assembly process and PCB layout constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and configurations to support diverse electronic interconnection needs. The 395-021-524-102 specifically addresses requirements for compact, high-density single-row connections in professional electronic assemblies.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference documentation for verified substitute part numbers. Generic equivalents may not match the precise dimensional tolerances or contact specifications required for this application.
